Gyoto::Astrobj::Disk3D Class Reference

Geometrically thick disk read from FITS file. More...

#include <GyotoDisk3D.h>

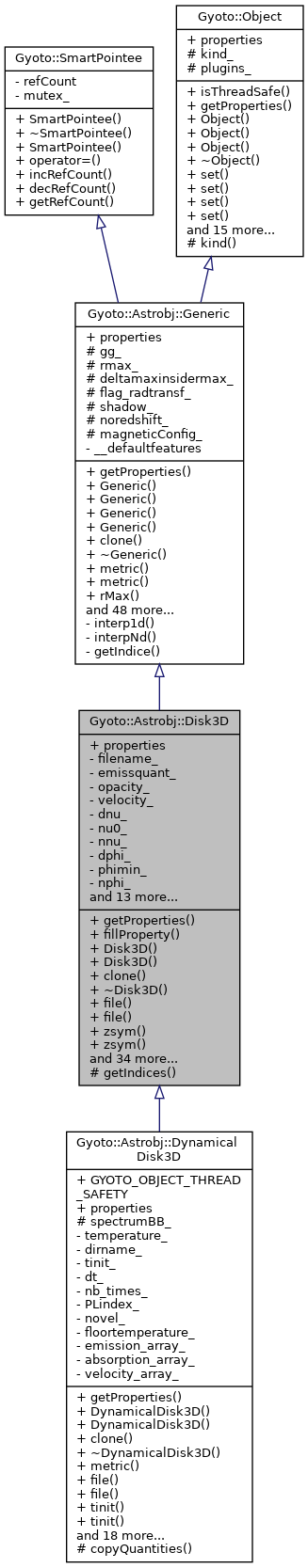

Inheritance diagram for Gyoto::Astrobj::Disk3D:
Gyoto::Astrobj::Generic Gyoto::SmartPointee Gyoto::Object Gyoto::Astrobj::DynamicalDisk3D

List of all members.

Public Types

typedef Gyoto::SmartPointer
< Gyoto::SmartPointee
Subcontractor_t (Gyoto::FactoryMessenger *, std::vector< std::string > const &)
 A subcontractor builds an object upon order from the Factory.

Public Member Functions

virtual Property const * getProperties () const
 Get list of properties.
void fillProperty (Gyoto::FactoryMessenger *fmp, Property const &p) const
 Output a single Property to XML.
 Disk3D ()
 Standard constructor.
 Disk3D (const Disk3D &)
 Copy constructor.
virtual Disk3Dclone () const
 Cloner.
virtual ~Disk3D ()
 Destructor.
virtual void fitsRead (std::string filename_)
 Read parameters and arrays from FITS file.
virtual void fitsWrite (std::string filename_)
 Write parameters and arrays to FITS file.
void file (std::string const &f)
std::string file () const
void zsym (bool t)
bool zsym () const
void tPattern (double t)
double tPattern () const
void omegaPattern (double t)
double omegaPattern () const
void setEmissquant (double *pattern)
 Set Disk3D::emissquant_.
void opacity (double *pattern)
void setVelocity (double *pattern)
 Set Disk3D::velocity__.
virtual void copyEmissquant (double const *const pattern=NULL, size_t const naxes[4]=NULL)
 Set Disk3D::emissquant_.
virtual double const * getEmissquant () const
 Get Disk3D::emissquant_.
virtual void getEmissquantNaxes (size_t naxes[4]) const
 Get { Disk3D::nnu_, Disk3D::nphi_, Disk3D::nz_, Disk3D::nr_ }.
virtual void copyOpacity (double const *const pattern=NULL, size_t const naxes[4]=NULL)
virtual double const * opacity () const
 Get Disk3D::opacity_.
virtual void copyVelocity (double const *const pattern=NULL, size_t const naxes[3]=NULL)
 Set Disk3D::velocity_.
virtual double const * getVelocity () const
 Get Disk3D::velocity_.
virtual void repeatPhi (size_t n)
 Set Disk3D::repeat_phi_.
virtual size_t repeatPhi () const
 Get Disk3D::repeat_phi_.
virtual void nu0 (double freq)
 Set Disk3D::nu0_.
virtual double nu0 () const
 Get Disk3D::nu0_.
virtual void dnu (double dfreq)
 Set Disk3D::dnu_.
virtual double dnu () const
 Get Disk3D::dnu_.
void rin (double rrin)
 Set Disk3D::rin_.
double rin () const
 Get Disk3D::rin_.
void rout (double rout)
 Set Disk3D::rout_.
double rout () const
 Get Disk3D::rout_.
void zmin (double zmin)
 Set Disk3D::zmin_.
double zmin () const
 Get Disk3D::zmin_.
void zmax (double zmax)
 Set Disk3D::zmax_.
double zmax () const
 Get Disk3D::zmax_.
void phimin (double phimin)
 Set Disk3D::phimin_.
double phimin () const
 Get Disk3D::phimin_.
void phimax (double phimax)
 Set Disk3D::phimax_.
double phimax () const
 Get Disk3D::phimax_.
int Impact (Photon *ph, size_t index, Astrobj::Properties *data)
 Does a photon at these coordinates impact the object?
virtual void getVelocity (double const pos[4], double vel[4])
 Get fluid 4-velocity at point.
virtual SmartPointer
< Metric::Generic
metric () const
 Get the Metric gg_.
virtual void metric (SmartPointer< Metric::Generic >)
 Set the Metric gg_.
virtual double rMax ()
 Get maximal distance from center of coordinate system.
virtual double rMax () const
 Get maximal distance from center of coordinate system.
virtual double rMax (std::string const &unit)
 Get rmax_ is specified unit.
virtual double rMax (std::string const &unit) const
 Get rmax_ is specified unit.
virtual void rMax (double val)
 Set maximal distance from center of coordinate system.
virtual void rMax (double val, std::string const &unit)
 Set maximal distance from center of coordinate system.
virtual double deltaMax (double coord[8])
 Get max step constraint for adaptive integration.
const std::string kind () const
 Get the kind of the Astrobj (e.g. "Star").
void opticallyThin (bool flag)
 Set whether the object is optically thin.
bool opticallyThin () const
 Query whether object is optically thin.
void radiativeQ (bool flag)
bool radiativeQ () const
virtual void radiativeQ (double Inu[], double Taunu[], double nu_em[], size_t nbnu, double dsem, double coord_ph[8], double coord_obj[8]=NULL) const
void showshadow (bool flag)
bool showshadow () const
void redshift (bool flag)
bool redshift () const
virtual Gyoto::Quantity_t getDefaultQuantities ()
 Which quantities to compute if know was requested.
virtual void setParameters (FactoryMessenger *fmp)
 Main loop in Subcontractor_t function.
virtual void processHitQuantities (Photon *ph, double *coord_ph_hit, double *coord_obj_hit, double dt, Astrobj::Properties *data) const
 Fills Astrobj::Properties.
virtual double emission (double nu_em, double dsem, double coord_ph[8], double coord_obj[8]=NULL) const
 Specific intensity I.
virtual void emission (double Inu[], double nu_em[], size_t nbnu, double dsem, double coord_ph[8], double coord_obj[8]=NULL) const
 Specific intensity I for several values of em.
virtual double integrateEmission (double nu1, double nu2, double dsem, double c_ph[8], double c_obj[8]=NULL) const
 12 I d (or j)
virtual void integrateEmission (double *I, double const *boundaries, size_t const *chaninds, size_t nbnu, double dsem, double *cph, double *co) const
 12 I d (or j)
virtual double transmission (double nuem, double dsem, double coord[8]) const
 Transmission: exp( * dsem ).
void incRefCount ()
 Increment the reference counter. Warning: Don't mess with the counter.
int decRefCount ()
 Decrement the reference counter and return current value. Warning: Don't mess with the counter.
int getRefCount ()
 Get the current number of references.
virtual bool isThreadSafe () const
 Whether this class is thread-safe.
void set (Property const &p, Value val)
 Set Value of a Property.
void set (Property const &p, Value val, std::string const &unit)
 Set Value (expressed in unit) of a Property.
void set (std::string const &pname, Value val)
 Set Value of a Property.
void set (std::string const &pname, Value val, std::string const &unit)
 Set Value (expressed in unit) of a Property.
Value get (Property const &p) const
 Get Value of a Property.
Value get (std::string const &pname) const
 Get Value of a Property.
Value get (Property const &p, std::string const &unit) const
 Get Value of a Property, converted to unit.
Value get (std::string const &pname, std::string const &unit) const
 Get Value of a Property, converted to unit.
Property const * property (std::string const pname) const
 Find property by name.
virtual void fillElement (Gyoto::FactoryMessenger *fmp) const
 Fill the XML element for this Object.
virtual int setParameter (std::string name, std::string content, std::string unit)
 Set parameter by name.
virtual void setParameter (Gyoto::Property const &p, std::string const &name, std::string const &content, std::string const &unit)
 Set parameter by Property (and name).
std::string describeProperty (Gyoto::Property const &p) const
 Format desrciption for a property.
void help () const
 Print (to stdout) some help on this class.

Static Public Attributes

static GYOTO_OBJECT Property const properties []
 Property list.

Protected Member Functions

void getIndices (size_t i[4], double const co[4], double nu=0.) const
 Get emissquant_ cell corresponding to position co[4].

Protected Attributes

SmartPointer
< Gyoto::Metric::Generic
gg_
 The Metric in this end of the Universe.
double rmax_
 Maximum distance to the center of the coordinate system [geometrical units].
bool flag_radtransf_
 1 if radiative transfer inside Astrobj, else 0
int radiativeq_
 1 to use the new radiativeQ function (under dvp)
int shadow_
 1 to highlight the shadow region in the image
int noredshift_
 1 to impose redshift factor g = 1
std::string kind_
 The "kind" that is output in the XML entity.
std::vector< std::string > plugins_
 The plug-ins that needs to be loaded to access this instance's class.

Private Attributes

std::string filename_
 Optional FITS file name containing the arrays.
double * emissquant_
 Physical quantity yielding emission.
double * opacity_
 Opacity, same dimensions as emissquant_.
double * velocity_
 Velocity(r, z, phi).
double dnu_
 Frequency scale of PatternDisk::emission_ in Hz.
double nu0_
 Lowest frequency provided in PatternDisk::emission_ in Hz.
size_t nnu_
 Number of frequencies provided in PatternDisk::emission_.
double dphi_
 between two grid columns
double phimin_
 Minimum in grid.
size_t nphi_
 Grid size in the direction.
double phimax_
 Maximum in grid.
size_t repeat_phi_
 Number of times the pattern should be repeated to cover [0, 2].
double dz_
 Altitude step.
double zmin_
 Minimum altitude.
size_t nz_
 Grid size in the altitude direction.
double zmax_
 Maximum altitude.
double dr_
 Radius step.
double rin_
 Inner radius of the grid.
size_t nr_
 Number of rows in the patternGrid size in the r direction.
double rout_
 Outer radius of the grid.
int zsym_
 1 to symmetrize the grid z -> -z (default case)
double tPattern_
 If the disk is being rotated (like a pattern disk) this is the origin of time for this rotation.
double omegaPattern_
 If the disk is being rotated (like a pattern disk) this is the rotation velocity dphi/dt.

Friends

class Gyoto::SmartPointer< Gyoto::Astrobj::Disk3D >
class Gyoto::SmartPointer< Gyoto::Astrobj::Generic >

Detailed Description

Geometrically thick disk read from FITS file.

This class is the base class for thick disks. The emitter's velocity is given in a FITS file, together with emission related quantity (typically temperature). This class mainly implements the Impact() function. Emission() function is here left to its default, and should be implemented according to specific needs in heir classes. Here the disk is supposed not to evolve in time. The dynamical treatment is provided in heir classes.

The 3D disk is assumed to be described by a regular (non adaptive) grid of cylindrical geometry. The disk is a slab from rin_ to rout_ and zmin_ (typically = -zmax_) to zmax_.


Member Typedef Documentation

typedef Gyoto::SmartPointer<Gyoto::SmartPointee> Gyoto::SmartPointee::Subcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &) [inherited]

A subcontractor builds an object upon order from the Factory.

Various classes need to provide a subcontractor to be able to instantiate themselves upon order from the Factory. A subcontractor is a function (often a static member function) which accepts a pointer to a FactoryMessenger as unique parameter, communicates with the Factory using this messenger to read an XML description of the object to build, and returns this objet. SmartPointee::Subcontractor_t* is just generic enough a typedef to cast to and from other subcontractor types: Astrobj::Subcontractor_t, Metric::Subcontractor_t, Spectrum::Subcontractor_t. A subcontractor needs to be registered using the relevant Register() function: Astrobj::Register(), Metric::Register(), Spectrum::Register().


Member Function Documentation

virtual void Gyoto::Astrobj::Disk3D::copyEmissquant ( double const *const   pattern = NULL,
size_t const   naxes[4] = NULL
) [virtual]

Set Disk3D::emissquant_.

Disk3D::emissquant_ is freed if not NULL, reallocated, and pattern is copied into emission_.

If Disk3D::velocity_ or has been set previously with mismatching sizes, it is deallocated too.

Finally, Disk3D::nnu_, Disk3D::nphi_, Disk3D::nz_ and Disk3D::nr_ are set according to naxes.

Parameters:
pattern Array to copy as emission_. May be NULL in which case emission_ is simply deallocated and set to NULL.
naxes { nnu_, nphi_, nz_, nr_ }.
virtual void Gyoto::Astrobj::Disk3D::copyVelocity ( double const *const   pattern = NULL,
size_t const   naxes[3] = NULL
) [virtual]

Set Disk3D::velocity_.

Disk3D::velocity_ is first freed if not NULL and set to NULL.

If pattern is not NULL, Disk3D::emissquant_ must have been set previously with matching dimensions. Disk3D::velocity_ is then reallocated, and pattern is copied into velocity_.

Parameters:
pattern Array to copy as velocity_. May be NULL in which case velocity_ is simply deallocated and set to NULL.
naxes { nphi_, nz_, nr_ }.
virtual double Gyoto::Astrobj::Generic::deltaMax ( double  coord[8]  )  [virtual, inherited]

Get max step constraint for adaptive integration.

Parameters:
[in] coord position
Returns:
max step to find this object reliably

Reimplemented in Gyoto::Astrobj::Complex.

std::string Gyoto::Object::describeProperty ( Gyoto::Property const &  p  )  const [inherited]

Format desrciption for a property.

Returns a string containing the name(s) and type of the property, as well as whether it supports unit.

virtual void Gyoto::Astrobj::Generic::emission ( double  Inu[],
double  nu_em[],
size_t  nbnu,
double  dsem,
double  coord_ph[8],
double  coord_obj[8] = NULL
) const [virtual, inherited]

Specific intensity I for several values of em.

Called by the default implementation for processHitQuantities().

emission() computes the intensity I emitted by the small volume of length dsem. It should take self-absorption along dsem into account.

Same as emission(double nu_em, double dsem, double coord_ph[8], double coord_obj[8]=NULL) const looping on several values of nu_em.

Parameters:
Inu[nbnu] Output (must be set to a previously allocated array of doubles)
nu_em[nbnu] Frequencies at emission
nbnu Size of Inu[] and nu_em[]
dsem Length over which to integrate inside the object
coord_ph Photon coordinate
coord_obj Emitter coordinate at current photon position
Returns:
I or dI [W m-2 sr-2]

Reimplemented in Gyoto::Astrobj::PolishDoughnut, Gyoto::Astrobj::Python::Standard, and Gyoto::Astrobj::Python::ThinDisk.

virtual double Gyoto::Astrobj::Generic::emission ( double  nu_em,
double  dsem,
double  coord_ph[8],
double  coord_obj[8] = NULL
) const [virtual, inherited]

Specific intensity I.

Called by the default implementation for processHitQuantities().

emission() computes the intensity I emitted by the small volume of length dsem, in the emitter's frame. It should take self-absorption along dsem into account.

Reminder :

  • intensity = I [J m^-2 s^-1 ster^-1 Hz^-1];
  • invariant intensity = I/3, which has the same value in any frame;
  • emission coefficient = j [J m^-3 s^-1 ster^-1 Hz^-1] , defined by dI = j*ds, where ds is the distance travelled by the photon inside the object;
  • invariant emission coef = j/2, which has the same value in any frame.

The equation used for radiative transfer (without absorption) is:

d(I/3)/d = (j/2) [*]

where is the integration parameter along the null geodesic.

NB: Let us consider a particular observer, with being the frequency measured by this observer, and ds being the proper distance (as measured by the observer) that the photon travels as it moves from to +d along its geodesic. Then it can be shown that:

d = ds/

This shows that Eq. [*] is homogeneous.

The default implementation returns 1. if optically thick and dsem if optically thin. It allows for a quick implementation of your object for visualization purposes.

Parameters:
nu_em Frequency at emission [Hz]
dsem length over which to integrate inside the object [geometrical units]
coord_ph Photon coordinate
coord_obj Emitter coordinate at current photon position

Reimplemented in Gyoto::Astrobj::DirectionalDisk, Gyoto::Astrobj::DynamicalDisk, Gyoto::Astrobj::DynamicalDisk3D, Gyoto::Astrobj::InflateStar, Gyoto::Astrobj::Jet, Gyoto::Astrobj::NeutronStarAnalyticEmission, Gyoto::Astrobj::NeutronStarModelAtmosphere, Gyoto::Astrobj::PageThorneDisk, Gyoto::Astrobj::PatternDisk, Gyoto::Astrobj::PatternDiskBB, Gyoto::Astrobj::PolishDoughnut, Gyoto::Astrobj::ThinDiskIronLine, Gyoto::Astrobj::ThinDiskPL, Gyoto::Astrobj::Torus, Gyoto::Astrobj::UniformSphere, Gyoto::Astrobj::Python::Standard, and Gyoto::Astrobj::Python::ThinDisk.

virtual void Gyoto::Object::fillElement ( Gyoto::FactoryMessenger fmp  )  const [virtual, inherited]

Fill the XML element for this Object.

The base implementation simply calls fillProperty() for each Property defined for the Object.

Derived classes should avoid overriding fillElement(). It may make sense occasionally, e.g. to make sure that the metric is output first.

To customize how a given Property is rendered, it is better to override fillProperty().

If this method is overridden, the implementation should in general call fillElement() on the direct base.

Reimplemented in Gyoto::Astrobj::Complex, Gyoto::Spectrometer::Complex, and Gyoto::Scenery.

void Gyoto::Astrobj::Disk3D::fillProperty ( Gyoto::FactoryMessenger fmp,
Property const &  p
) const [virtual]

Output a single Property to XML.

The base implementation decides what to do based on the p.type. The format matches how setParameters() an setParameter() would interpret the XML descition.

Overriding this method should be avoided, but makes sense in some cases (for instance Screen::fillProperty() selects a different unit for Distance based on its magnitude, so that stellar sizes are expressed in solar radii while smaller sizes can be expressed in meters and larger sizes in parsecs).

Overriding implementation should fall-back on calling the implementation in the direct parent class:

 class A: public Object {};
 class B: public A {
  using B::setParameter;
  virtual void fillProperty(Gyoto::FactoryMessenger *fmp,
                        Property const &p) const ;
 };
 void B::fillProperty(Gyoto::FactoryMessenger *fmp,
                        Property const &p) const {
   if (name=="Duff") fmp->doSomething();
   else A::fillProperty(fmp, p);
 }

Reimplemented from Gyoto::Object.

virtual Gyoto::Quantity_t Gyoto::Astrobj::Generic::getDefaultQuantities (  )  [virtual, inherited]

Which quantities to compute if know was requested.

Return a Gyoto::Quantity_t suitable as input to Gyoto::Scenery::setRequestedQuantities() to set de default quantities to compute for this object. The default of these defaults GYOTO_QUANTITY_INTENSITY.

Reimplemented in Gyoto::Astrobj::PageThorneDisk.

virtual Property const* Gyoto::Astrobj::Disk3D::getProperties (  )  const [virtual]

Get list of properties.

This method is declared automatically by the GYOTO_OBJECT macro and defined automatically by the GYOTO_PROPERTY_END macro.

Reimplemented from Gyoto::Astrobj::Generic.

Reimplemented in Gyoto::Astrobj::DynamicalDisk3D.

virtual void Gyoto::Astrobj::Disk3D::getVelocity ( double const   pos[4],
double  vel[4]
) [virtual]

Get fluid 4-velocity at point.

Fill vel with the 4-vector velocity of the fluid at 4-position pos.

Parameters:
[in] pos 4-position at which to compute velocity;
[out] vel 4-velocity at pos.

Reimplemented in Gyoto::Astrobj::DynamicalDisk3D.

void Gyoto::Object::help (  )  const [inherited]

Print (to stdout) some help on this class.

Describe all properties that this instance supports.

int Gyoto::Astrobj::Disk3D::Impact ( Photon ph,
size_t  index,
Astrobj::Properties data
) [virtual]

Does a photon at these coordinates impact the object?

Impact() checks whether a Photon impacts the object between two integration steps of the photon's trajectory (those two steps are photon->getCoord(index, coord1) and photon->getCoord(index+1, coord2)). Impact returns 1 if the photon impacts the object between these two steps, else 0. In many cases of geometrically thick obects, the implementation Astrobj::Standard::Impact() will be fine.

Impact will call Generic::processHitQuantities() (which is virtual and may be re-implemented) to compute observable properties on demand: if the data pointer is non-NULL, the object will look in it for pointers to properties which apply to its kind. If a pointer to a property known to this object is present, then the property is computed and store at the pointed-to address. For instance, all objects know the "intensity" property. If data->intensity != NULL, the instensity is computed and stored in *data->intensity.

If data is non-NULL and only in this case, processHitQuantities() will also call ph->transmit() to update the transmissions of the Photon (see Photon::transmit(size_t, double)). This must not be done if data is NULL (see Astrobj::Complex::Impact() for an explanation).

Impact() may not extend the ph Worldline. The only two dates that are guaranteed to be defined are at indices index and index+1.

Parameters:
ph Gyoto::Photon aimed at the object;
index Index of the last photon step;
data Pointer to a structure to hold the observables at impact.
Returns:
1 if impact, 0 if not.

Implements Gyoto::Astrobj::Generic.

virtual void Gyoto::Astrobj::Generic::integrateEmission ( double *  I,
double const *  boundaries,
size_t const *  chaninds,
size_t  nbnu,
double  dsem,
double *  cph,
double *  co
) const [virtual, inherited]

12 I d (or j)

Like double integrateEmission(double nu1, double nu2, double dsem, double c_ph[8], double c_obj[8]) const for each Spectrometer channel.

Reimplemented in Gyoto::Astrobj::Python::Standard, and Gyoto::Astrobj::Python::ThinDisk.

virtual double Gyoto::Astrobj::Generic::integrateEmission ( double  nu1,
double  nu2,
double  dsem,
double  c_ph[8],
double  c_obj[8] = NULL
) const [virtual, inherited]

12 I d (or j)

Compute the integral of emission() from 1 to 2. The default implementation is a numerical integrator which works well enough and is reasonably fast if emission() is a smooth function (i.e. no emission or absorption lines). If possible, it is wise to implement an analytical solution. It is used by processHitQuantities to compute the "BinSpectrum" quantity which is the most physical: it is the only quantity that can be actually measured directly by a real-life instrument.

Reimplemented in Gyoto::Astrobj::Torus, Gyoto::Astrobj::UniformSphere, Gyoto::Astrobj::Python::Standard, and Gyoto::Astrobj::Python::ThinDisk.

virtual bool Gyoto::Object::isThreadSafe (  )  const [virtual, inherited]

Whether this class is thread-safe.

Return True if this object is thread-safe, i.e. if an instance and its clone can be used in parallel threads (in the context of Scenery::raytrace()). Known objects which are not thread-safe include Lorene metrics and everything from the Python plug-in.

The default implementation considers that the class itself is thread safe and recurses into the declared properties to check whether they are safe too. Classes that abide to the Object/Property paradigm and are themselves thread-safe have nothing special to do.

Objects that clone children in their copy constructor that are not declared as properties must take these children into account.

Classes that are never thread-safe must declare it. It acn be easily done using GYOTO_OBJECT_THREAD_SAFETY in the class declaration and GYOTO_PROPERTY_THREAD_UNSAFE in the class definition.

bool Gyoto::Astrobj::Generic::opticallyThin (  )  const [inherited]

Query whether object is optically thin.

See opticallyThin(bool flag).

void Gyoto::Astrobj::Generic::opticallyThin ( bool  flag  )  [inherited]

Set whether the object is optically thin.

Set flag indicating that radiative transfer should be integrated, i.e. the object is to be considered optically thin.

Parameters:
flag,: 1 if optically thin, 0 if optically thick.
virtual void Gyoto::Astrobj::Generic::processHitQuantities ( Photon ph,
double *  coord_ph_hit,
double *  coord_obj_hit,
double  dt,
Astrobj::Properties data
) const [virtual, inherited]

Fills Astrobj::Properties.

processHitQuantities fills the requested data in Impact. To use it, you need to call it in the Impact() method for your object in case of hit. It will fill Redshift, Intensity, Spectrum, BinSpectrum and update the Photon's transmission by calling Photon::transmit(), only if data==NULL.

You can overload it for your Astrobj. The generic implementation calls emission(), integrateEmission() and transmission() below.

Reimplemented in Gyoto::Astrobj::DynamicalDiskBolometric, Gyoto::Astrobj::PageThorneDisk, and Gyoto::Astrobj::UniformSphere.

Property const* Gyoto::Object::property ( std::string const   pname  )  const [inherited]

Find property by name.

Look into the Property list for a Property whose name (or name_false, for a boolean Property) is pname. Return a const pointer to the first such property found, or NULL if none is found.

virtual void Gyoto::Astrobj::Generic::rMax ( double  val,
std::string const &  unit
) [virtual, inherited]

Set maximal distance from center of coordinate system.

Call Generic::rMax(double val) after converting val from unit to geometrical units.

Parameters:
val rmax_ expressed in unit "unit";
unit string...
virtual void Gyoto::Astrobj::Generic::rMax ( double  val  )  [virtual, inherited]

Set maximal distance from center of coordinate system.

Set maximal distance from center of coordinate system at which a Photon may hit the object.

Parameters:
val new rmax_ in geometrical units.
virtual double Gyoto::Astrobj::Generic::rMax ( std::string const &  unit  )  [virtual, inherited]

Get rmax_ is specified unit.

Call rMax() and convert result to unit.

Parameters:
unit string
Returns:
double rmax converted to unit
virtual double Gyoto::Astrobj::Generic::rMax (  )  [virtual, inherited]

Get maximal distance from center of coordinate system.

Get maximal distance from center of coordinate system at which a Photon may hit the object.

Child classes may use the rmax_ member to cache this value, if its current value is DBL_MAX.

It can also be set using rMax().

Returns:
rmax_ in geometrical units

Reimplemented in Gyoto::Astrobj::FixedStar, Gyoto::Astrobj::Star, and Gyoto::Astrobj::Torus.

void Gyoto::Astrobj::Disk3D::setEmissquant ( double *  pattern  )

Set Disk3D::emissquant_.

The pointer is copied directly, not the array content.

This is a low-level function. Beware that:

  • previously allocated array will not be freed automatically;
  • array attached when the destructor is called will be freed.
virtual void Gyoto::Object::setParameter ( Gyoto::Property const &  p,
std::string const &  name,
std::string const &  content,
std::string const &  unit
) [virtual, inherited]

Set parameter by Property (and name).

This function is used when parsing an XML description, if Property (p) of this name is found (i.e. either p.name or p.name_false is equal to name). Implementation should fall-back on calling the direct's parent implementation:

 class A: public Object {};
 class B: public A {
  using B::setParameter;
  virtual void setParameter(Gyoto::Property const &p,
                            std::string name,
                                std::string content,
                                std::string unit);
 };
 void B::setParameter(Gyoto::Property const &p,
                          std::string name,
                          std::string content,
                          std::string unit) {
   if (name=="Duff") doSomething(content, unit);
   else A::setParameter(p, name, content, unit);
 }
Parameters:
p Property that matches name (p.name == name or p.name_false == name)
name XML name of the parameter (XML entity)
content string representation of the value
unit string representation of the unit

Reimplemented in Gyoto::Astrobj::PolishDoughnut.

virtual int Gyoto::Object::setParameter ( std::string  name,
std::string  content,
std::string  unit
) [virtual, inherited]

Set parameter by name.

This function is used when parsing an XML description, if no Property of this name is found. Overriding implementation should fall-back on calling the direct's parent implementation:

 class A: public Object {};
 class B: public A {
  using B::setParameter;
  virtual int setParameter(std::string name,
                            std::string content,
                            std::string unit);
 };
 int B::setParameter(std::string name,
                            std::string content,
                            std::string unit) {
   if (name=="Duff") doSomething(content, unit);
   else return A::setParameter(name, content, unit);
   return 0;  // name was known
 }
Parameters:
name XML name of the parameter (XML entity). This may have a path component, e.g. "Astrobj::Radius", in which case a property named "Astrobj" will be sought in the current object, and setParameter will be called recusrively on this Astrobj with Radius as name.
content string representation of the value
unit string representation of the unit
Returns:
0 if this parameter is known, 1 if it is not.

Reimplemented in Gyoto::Astrobj::EquatorialHotSpot, Gyoto::Metric::KerrKS, Gyoto::Metric::RotStar3_1, and Gyoto::Astrobj::Star.

virtual void Gyoto::Astrobj::Generic::setParameters ( FactoryMessenger fmp  )  [virtual, inherited]

Main loop in Subcontractor_t function.

The Subcontractor_t function for each Astrobj kind should look somewhat like this (templated as Gyoto::Astrobj::Subcontractor<MyKind>):

 SmartPointer<Astrobj::Generic>
 Gyoto::Astrobj::MyKind::Subcontractor(FactoryMessenger* fmp) {
   SmartPointer<MyKind> ao = new MyKind();
   ao -> setParameters(fmp);
   return ao;
 }

Each object kind should implement setParameter(string name, string content, string unit) to interpret the individual XML elements. setParameters() can be overloaded in case the specific Astrobj class needs low level access to the FactoryMessenger. See UniformSphere::setParameters().

Reimplemented from Gyoto::Object.

Reimplemented in Gyoto::Astrobj::Complex, Gyoto::Astrobj::EquatorialHotSpot, Gyoto::Astrobj::OscilTorus, and Gyoto::Astrobj::Star.

void Gyoto::Astrobj::Disk3D::setVelocity ( double *  pattern  )

Set Disk3D::velocity__.

The pointer is copied directly, not the array content.

This is a low-level function. Beware that:

  • previously allocated array will not be freed automatically;
  • array attached when the destructor is called will be freed.
virtual double Gyoto::Astrobj::Generic::transmission ( double  nuem,
double  dsem,
double  coord[8]
) const [virtual, inherited]

Transmission: exp( * dsem ).

transmission() computes the transmission of this fluid element or 0 if optically thick. The default implementation returns 1. (no attenuation) if optically thin, 0. if optically thick.

Parameters:
nuem frequency in the fluid's frame
coord Photon coordinate
dsem geometrical length in geometrical units

Reimplemented in Gyoto::Astrobj::DynamicalDisk3D, Gyoto::Astrobj::PatternDisk, Gyoto::Astrobj::PolishDoughnut, Gyoto::Astrobj::Torus, Gyoto::Astrobj::Python::Standard, and Gyoto::Astrobj::Python::ThinDisk.


Member Data Documentation

Physical quantity yielding emission.

An array of dimensionality double[nr_][nz_][nphi_][nnu_]. In FITS format, the first dimension is nu, the second phi, the third z and last r. It typically contains temperature and is used only by subclasses.

std::string Gyoto::Object::kind_ [protected, inherited]

The "kind" that is output in the XML entity.

E.g. for an Astrobj, fillElement() will ensure

   <Astrobj kind="kind_" ...>...</Astrobj>

is written.

std::vector<std::string> Gyoto::Object::plugins_ [protected, inherited]

The plug-ins that needs to be loaded to access this instance's class.

E.g. for an Astrobj, fillElement() will ensure

   <Astrobj ... plugin="plugins_">...</Astrobj>

is written.

GYOTO_OBJECT Property const Gyoto::Astrobj::Disk3D::properties[] [static]

Property list.

This static member is declared automatically by the GYOTO_OBJECT macro and defined automatically by the GYOTO_PROPERTY_START, GYOTO_PROPERTY_END and GYOTO_PROPERTY_* macros.

The list of properties is implemented as a static array of Property instances. The last item in a Property of type Property::empty_t, which evaluates to false, so the list can be considered to be NULL-terminated (it is actually rather false-terminated). This empty_t last item can be a link to another Property list: for instance, the last item in Gyoto::Astrobj::Standard::properties is a link to Gyoto::Astrobj::Generic::properties.

Reimplemented from Gyoto::Astrobj::Generic.

Reimplemented in Gyoto::Astrobj::DynamicalDisk3D.

Number of times the pattern should be repeated to cover [0, 2].

XML elment: <RepeatPhi>. FITS keyword: HIERARCH GYOTO Disk3D RepeatPhi

double Gyoto::Astrobj::Generic::rmax_ [protected, inherited]

Maximum distance to the center of the coordinate system [geometrical units].

Maximum distance from the center of the coordinate system at which a photon may hit the object. Child classes may compute a decent value for rmax_ at any time if rmax_ is DBL_MAX. External classes (Photons in particular) must use rMax() to access this information.

rmax_ is in geometrical units.

Velocity(r, z, phi).

An array of dimensionality double[nr_][nz_][nphi_][3]. In FITS format, the second dimension is phi, the third z and last r. The first plane in the first FITS dimention is dphi/dt, the second dz/dt the last dr/dt.


The documentation for this class was generated from the following file:

Generated on 22 Jul 2017 for Gyoto by  doxygen 1.6.1
