Gyoto::Metric::NumericalMetricLorene Class Reference

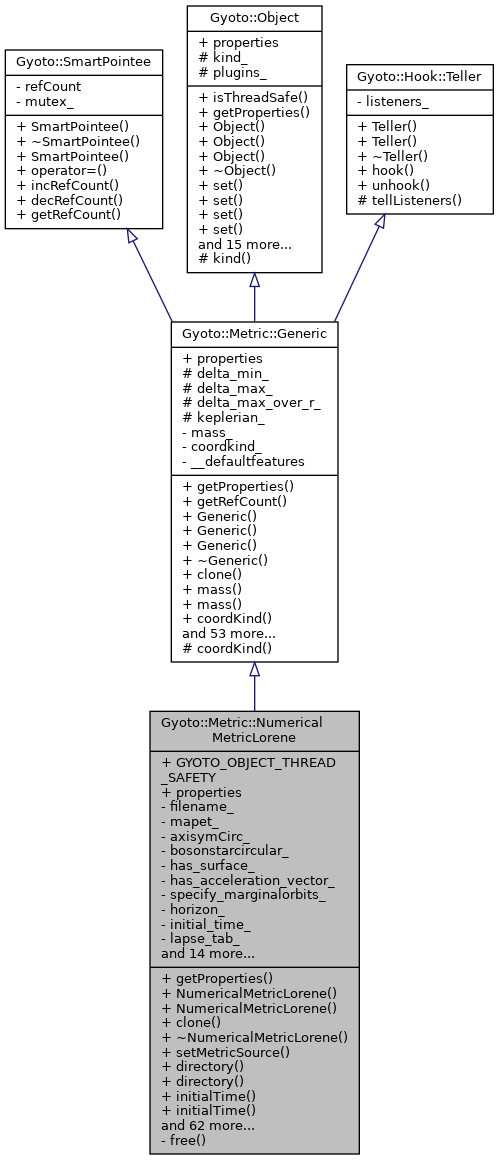

Inheritance diagram for Gyoto::Metric::NumericalMetricLorene:
Gyoto::Metric::Generic Gyoto::SmartPointee Gyoto::Object Gyoto::Hook::Teller

List of all members.

Public Types

typedef Gyoto::SmartPointer
< Gyoto::SmartPointee
Subcontractor_t (Gyoto::FactoryMessenger *, std::vector< std::string > const &)
 A subcontractor builds an object upon order from the Factory.

Public Member Functions

virtual Property const * getProperties () const
 Get list of properties.
 NumericalMetricLorene ()
 Constructor.
 NumericalMetricLorene (const NumericalMetricLorene &)
 Copy constructor.
virtual NumericalMetricLoreneclone () const
 Virtual copy constructor.
virtual ~NumericalMetricLorene ()
 Destructor.
virtual void setMetricSource ()
void directory (std::string const &dir)
std::string directory () const
double initialTime () const
void initialTime (double t0)
double horizon () const
void horizon (double t0)
double rico () const
void rico (double r0)
bool hasSurface () const
void hasSurface (bool s)
bool hasAccelerationVector () const
void hasAccelerationVector (bool aa)
bool bosonstarcircular () const
void bosonstarcircular (bool)
bool specifyMarginalOrbits () const
void specifyMarginalOrbits (bool s)
bool mapEt () const
void mapEt (bool s)
std::vector< double > refineIntegStep () const
void refineIntegStep (std::vector< double > const &)
Lorene::Vector ** getShift_tab () const
Lorene::Scalar ** getLapse_tab () const
Lorene::Sym_tensor ** getGamcon_tab () const
Lorene::Sym_tensor ** getGamcov_tab () const
double * getTimes () const
int getNbtimes () const
Lorene::Valeur ** getNssurf_tab () const
Lorene::Vector ** getVsurf_tab () const
Lorene::Vector ** getAccel_tab () const
Lorene::Scalar ** getLorentz_tab () const
Lorene::Valeur ** getHor_tab () const
double getRms () const
double getRmb () const
void setLapse_tab (Lorene::Scalar *lapse, int ii)
void setShift_tab (Lorene::Vector *shift, int ii)
void setGamcov_tab (Lorene::Sym_tensor *gamcov, int ii)
void setGamcon_tab (Lorene::Sym_tensor *gamcon, int ii)
void setKij_tab (Lorene::Sym_tensor *kij, int ii)
void setTimes (double time, int ii)
virtual double getSpecificAngularMomentum (double rr) const
virtual double getPotential (double const pos[4], double l_cst) const
virtual int myrk4 (double tt, const double coord[7], double h, double res[7]) const
virtual int myrk4 (Worldline *line, const double coord[8], double h, double res[8]) const
 RK4 integrator.
int myrk4_adaptive (Gyoto::Worldline *line, const double coord[8], double lastnorm, double normref, double coordnew[8], double h0, double &h1, double h1max) const
int myrk4_adaptive (double tt, const double coor[7], double lastnorm, double normref, double coornew[7], const double cst[2], double &tdot_used, double h0, double &h1, double &hused, double h1max) const
 With energy integration also, coor=[E,r,th,ph,dE/dt,Vr,Vth,Vph].
void reverseR (double tt, double coord[7]) const
void computeNBeta (const double coord[4], double &NN, double beta[3]) const
double gmunu (const double x[4], int mu, int nu) const
 Metric coefficients.
double gmunu (const double x[3], int indice_time, int mu, int nu) const
double gmunu_up_dr (const double x[4], int mu, int nu) const
 r derivative of contravariant 4-metric
double gmunu_up_dr (const double x[3], int indice_time, int mu, int nu) const
double christoffel (const double coord[4], const int alpha, const int mu, const int nu) const
 Chistoffel symbol.
double christoffel (const double coord[4], const int alpha, const int mu, const int nu, const int indice_time) const
virtual int christoffel (double dst[4][4][4], const double coord[4]) const
 Chistoffel symbol.
int christoffel (double dst[4][4][4], const double coord[4], const int indice_time) const
double christoffel3 (const double coord[3], const int indice_time, const int ii, const int jj, const int kk) const
 3-Christoffels
void setParticleProperties (Worldline *line, const double coord[8]) const
 Set Metric-specific constants of motion. Used e.g. in KerrBL.
double Interpol3rdOrder (double tt, int indice_time, double values[4]) const
 3rd order interpolation routine
double computeHorizon (const double *pos) const
 Computation of horizon value.
double computeHorizon (const double *pos, int indice) const
virtual int diff (const double coord[8], double res[8]) const
int diff (double tt, const double y[7], double res[7]) const
virtual int diff (const double y[7], double res[7], int indice_time) const
void circularVelocity (double const coor[4], double vel[3], double dir) const
 Yield circular velocity at a given position.
void circularVelocity (double const coor[4], double vel[3], double dir, int indice_time) const
const std::string kind () const
 Get kind_.
int coordKind () const
 Get coordinate kind.
int getRefCount ()
 Get the current number of references.
void mass (const double)
 Set mass used in unitLength().
void mass (const double, const std::string &unit)
 Set mass used in unitLength().
double mass () const
 Get mass used in unitLength().
double mass (const std::string &unit) const
 Get mass used in unitLength().
double unitLength () const
 M * G / c^2, M is in kg, unitLength in meters.
double unitLength (const std::string &unit) const
 unitLength expressed in specified unit
double deltaMin () const
void deltaMin (double h1)
double deltaMax () const
virtual double deltaMax (double const pos[8], double delta_max_external) const
void deltaMax (double h1)
double deltaMaxOverR () const
 Get delta_max_over_r_.
void deltaMaxOverR (double t)
 Set delta_max_over_r_.
bool keplerian () const
 Get keplerian_.
void keplerian (bool)
 Set keplerian_.
virtual void cartesianVelocity (double const coord[8], double vel[3])
 Compute xprime, yprime and zprime from 8-coordinates.
virtual double SysPrimeToTdot (const double coord[4], const double v[3]) const
 Compute tdot as a function of dr/dt, dtheta/dt and dphi/dt. Everything is in geometrical units.
virtual void circularVelocity (double const pos[4], double vel[4], double dir=1.) const
 Yield circular velocity at a given position.
virtual void nullifyCoord (double coord[8]) const
 Set tdot (coord[4]) such that coord is light-like. Everything is in geometrical units.
virtual void nullifyCoord (double coord[8], double &tdot2) const
 Set tdot (coord[4]) such that coord is light-like and return other possible tdot.
virtual double ScalarProd (const double pos[4], const double u1[4], const double u2[4]) const
 Scalar product.
virtual void observerTetrad (std::string const obskind, double const pos[4], double fourvel[4], double screen1[4], double screen2[4], double screen3[4]) const
 Computes the orthonormal local tetrad of the observer.
virtual void gmunu (double g[4][4], double const pos[4]) const
 Metric coefficients.
virtual int isStopCondition (double const coord[8]) const
 Check whether integration should stop.
void incRefCount ()
 Increment the reference counter. Warning: Don't mess with the counter.
int decRefCount ()
 Decrement the reference counter and return current value. Warning: Don't mess with the counter.
virtual bool isThreadSafe () const
 Whether this class is thread-safe.
void set (Property const &p, Value val)
 Set Value of a Property.
void set (Property const &p, Value val, std::string const &unit)
 Set Value (expressed in unit) of a Property.
void set (std::string const &pname, Value val)
 Set Value of a Property.
void set (std::string const &pname, Value val, std::string const &unit)
 Set Value (expressed in unit) of a Property.
Value get (Property const &p) const
 Get Value of a Property.
Value get (std::string const &pname) const
 Get Value of a Property.
Value get (Property const &p, std::string const &unit) const
 Get Value of a Property, converted to unit.
Value get (std::string const &pname, std::string const &unit) const
 Get Value of a Property, converted to unit.
Property const * property (std::string const pname) const
 Find property by name.
virtual void fillProperty (Gyoto::FactoryMessenger *fmp, Property const &p) const
 Output a single Property to XML.
virtual void fillElement (Gyoto::FactoryMessenger *fmp) const
 Fill the XML element for this Object.
virtual void setParameters (Gyoto::FactoryMessenger *fmp)
 Main loop for parsing Properties from XML description.
virtual int setParameter (std::string name, std::string content, std::string unit)
 Set parameter by name.
virtual void setParameter (Gyoto::Property const &p, std::string const &name, std::string const &content, std::string const &unit)
 Set parameter by Property (and name).
std::string describeProperty (Gyoto::Property const &p) const
 Format desrciption for a property.
void help () const
 Print (to stdout) some help on this class.
virtual void hook (Listener *listener)
 Start listening.
virtual void unhook (Listener *listener)
 Stop listening.

Public Attributes

 GYOTO_OBJECT_THREAD_SAFETY

Static Public Attributes

static GYOTO_OBJECT Property const properties []
 Property list.

Protected Member Functions

void kind (const std::string)
 Set kind_.
void coordKind (int coordkind)
 Set coordkind_.
virtual void tellListeners ()
 Call tell() on each hooked Listener.

Protected Attributes

double delta_min_
 Minimum integration step for the adaptive integrator.
double delta_max_
 Maximum integration step for the adaptive integrator.
double delta_max_over_r_
 Numerical tuning parameter.
bool keplerian_
 1 if circularVelocity should return the Newtonian Keplerian velocity, in r^-3/2
std::string kind_
 The "kind" that is output in the XML entity.
std::vector< std::string > plugins_
 The plug-ins that needs to be loaded to access this instance's class.

Private Member Functions

void free ()
 deallocate memory

Private Attributes

char * filename_
 Lorene .d data file(s) path.
bool mapet_
 Kind of Lorene mapping: 'false' for Map_af, 'true' for Map_et.
bool bosonstarcircular_
 1 to implement the circular velocity of a boson star
int has_surface_
 1 if the metric source has a surface
int has_acceleration_vector_
int specify_marginalorbits_
 1 if marginal orbits are specified in file
double horizon_
 Value of horizon (or any innermost limit).
double r_refine_
 Refine integration below this r.
double h0_refine_
 Imposed integration step for refined integration.
int refine_
 1 if refined integration needed
double initial_time_
 Time at which (first) metric is given.
Lorene::Scalar ** lapse_tab_
Lorene::Vector ** shift_tab_
Lorene::Sym_tensor ** gamcov_tab_
Lorene::Sym_tensor ** gamcon_tab_
Lorene::Sym_tensor ** kij_tab_
double * times_
 Coordinate times at which metrics are given.
int nb_times_
 Nb of time slices.
Lorene::Valeur ** nssurf_tab_
 Metric source (e.g. star) surface (if any).
Lorene::Vector ** vsurf_tab_
 4-velocity at surface (if any)
Lorene::Vector ** accel_tab_
 4-acceleration at surface (if any)
Lorene::Scalar ** lorentz_tab_
 Lorentz factor at surface (if any).
Lorene::Valeur ** hor_tab_
 Apparent horizon (if any).
double risco_
 ISCO coordinate radius.
double rico_
 Innermost circular orbit coordinate radius.
double rmb_
 Marginally bound orbit coordinate radius.

Friends

class Gyoto::SmartPointer< Gyoto::Metric::NumericalMetricLorene >
class Gyoto::SmartPointer< Gyoto::Metric::Generic >
class Gyoto::Hook::Listener

Member Typedef Documentation

typedef Gyoto::SmartPointer<Gyoto::SmartPointee> Gyoto::SmartPointee::Subcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &) [inherited]

A subcontractor builds an object upon order from the Factory.

Various classes need to provide a subcontractor to be able to instantiate themselves upon order from the Factory. A subcontractor is a function (often a static member function) which accepts a pointer to a FactoryMessenger as unique parameter, communicates with the Factory using this messenger to read an XML description of the object to build, and returns this objet. SmartPointee::Subcontractor_t* is just generic enough a typedef to cast to and from other subcontractor types: Astrobj::Subcontractor_t, Metric::Subcontractor_t, Spectrum::Subcontractor_t. A subcontractor needs to be registered using the relevant Register() function: Astrobj::Register(), Metric::Register(), Spectrum::Register().


Member Function Documentation

virtual int Gyoto::Metric::NumericalMetricLorene::christoffel ( double  dst[4][4][4],
const double  coord[4]
) const [virtual]

Chistoffel symbol.

Value of Christoffel symbol at point (x1, x2, x3).

Returns:
1 on error, 0 otherwise

Reimplemented from Gyoto::Metric::Generic.

double Gyoto::Metric::NumericalMetricLorene::christoffel ( const double  coord[4],
const int  alpha,
const int  mu,
const int  nu
) const [virtual]

Chistoffel symbol.

Value of Christoffel symbol at point (x1, x2, x3).

Reimplemented from Gyoto::Metric::Generic.

virtual void Gyoto::Metric::Generic::circularVelocity ( double const   pos[4],
double  vel[4],
double  dir = 1.
) const [virtual, inherited]

Yield circular velocity at a given position.

Give the velocity of a massive particle in circular orbit at the given position projected onto the equatorial plane. Such a velocity may not exist everywhere (or anywhere) for a given metric. This method is intended to be used by Astrobj classes such as Torus or ThinDisk.

If keplerian_ is set to true, this method should return the Keplerian velcity instead (derived classes should ensure this, see KerrBL::circularVelocity() for instance).

The default implementation throws an error if keplerian_ is set to false.

Parameters:
pos input: position,
vel output: velocity,
dir 1 for corotating, -1 for counterrotating.

Reimplemented in Gyoto::Metric::ChernSimons, Gyoto::Metric::KerrBL, Gyoto::Metric::KerrKS, and Gyoto::Metric::RezzollaZhidenko.

void Gyoto::Metric::NumericalMetricLorene::circularVelocity ( double const   coor[4],
double  vel[3],
double  dir
) const

Yield circular velocity at a given position.

Give the velocity of a massive particle in circular orbit at the given position projected onto the equatorial plane. Such a velocity may not exist everywhere (or anywhere) for a given metric. This method is intended to be used by Astrobj classes such as Torus or ThinDisk.

This circular velocity should be implemented for all specific numerical metric used.

If bosonstarcircular_ is set to true, this method returns the boson star circular velocity.

Parameters:
coor input: position,
vel output: velocity,
dir 1 for corotating, -1 for counterrotating.
void Gyoto::Metric::NumericalMetricLorene::computeNBeta ( const double  coord[4],
double &  NN,
double  beta[3]
) const

Compute lapse and shift at given coordinates

void Gyoto::Metric::Generic::coordKind ( int  coordkind  )  [protected, inherited]

Set coordkind_.

coordkind(int coordkind) is protected because, for most Metrics, it should not be changed in runtime. Set coordinate kind

void Gyoto::Metric::Generic::deltaMax ( double  h1  )  [inherited]

Set delta_max_

virtual double Gyoto::Metric::Generic::deltaMax ( double const   pos[8],
double  delta_max_external
) const [virtual, inherited]

Get delta max at a given position

Parameters:
pos 4-position
optional] delta_max_external external constraint on delta_max
Returns:
the smallest value between delta_max_, delta_max_external, and R*delta_max_over_r_ where R is pos[1] in spherical coordinates and max(x1, x2, x3) in Cartesian coordinates.
double Gyoto::Metric::Generic::deltaMax (  )  const [inherited]

Get delta_max_

void Gyoto::Metric::Generic::deltaMin ( double  h1  )  [inherited]

Set delta_min_

double Gyoto::Metric::Generic::deltaMin (  )  const [inherited]

Get delta_min_

std::string Gyoto::Object::describeProperty ( Gyoto::Property const &  p  )  const [inherited]

Format desrciption for a property.

Returns a string containing the name(s) and type of the property, as well as whether it supports unit.

virtual int Gyoto::Metric::NumericalMetricLorene::diff ( const double  coord[8],
double  res[8]
) const [virtual]

F function such as d(coord)/d(tau)=F(coord)

Reimplemented from Gyoto::Metric::Generic.

virtual void Gyoto::Object::fillElement ( Gyoto::FactoryMessenger fmp  )  const [virtual, inherited]

Fill the XML element for this Object.

The base implementation simply calls fillProperty() for each Property defined for the Object.

Derived classes should avoid overriding fillElement(). It may make sense occasionally, e.g. to make sure that the metric is output first.

To customize how a given Property is rendered, it is better to override fillProperty().

If this method is overridden, the implementation should in general call fillElement() on the direct base.

Reimplemented in Gyoto::Astrobj::Complex, Gyoto::Spectrometer::Complex, and Gyoto::Scenery.

virtual void Gyoto::Object::fillProperty ( Gyoto::FactoryMessenger fmp,
Property const &  p
) const [virtual, inherited]

Output a single Property to XML.

The base implementation decides what to do based on the p.type. The format matches how setParameters() an setParameter() would interpret the XML descition.

Overriding this method should be avoided, but makes sense in some cases (for instance Screen::fillProperty() selects a different unit for Distance based on its magnitude, so that stellar sizes are expressed in solar radii while smaller sizes can be expressed in meters and larger sizes in parsecs).

Overriding implementation should fall-back on calling the implementation in the direct parent class:

 class A: public Object {};
 class B: public A {
  using B::setParameter;
  virtual void fillProperty(Gyoto::FactoryMessenger *fmp,
                        Property const &p) const ;
 };
 void B::fillProperty(Gyoto::FactoryMessenger *fmp,
                        Property const &p) const {
   if (name=="Duff") fmp->doSomething();
   else A::fillProperty(fmp, p);
 }

Reimplemented in Gyoto::Astrobj::DirectionalDisk, Gyoto::Astrobj::Disk3D, Gyoto::Astrobj::EquatorialHotSpot, Gyoto::Astrobj::NeutronStarModelAtmosphere, Gyoto::Astrobj::PatternDisk, Gyoto::Astrobj::PolishDoughnut, Gyoto::Scenery, Gyoto::Screen, Gyoto::Astrobj::Star, and Gyoto::Spectrometer::Uniform.

virtual double Gyoto::Metric::NumericalMetricLorene::getPotential ( double const   pos[4],
double  l_cst
) const [virtual]

Returns potential W=-ln(|u_t|) for a cst specific angular momentum l_cst Should be implemented in derived classes if useful If called on the base class, returns an error

Reimplemented from Gyoto::Metric::Generic.

virtual Property const* Gyoto::Metric::NumericalMetricLorene::getProperties (  )  const [virtual]

Get list of properties.

This method is declared automatically by the GYOTO_OBJECT macro and defined automatically by the GYOTO_PROPERTY_END macro.

Reimplemented from Gyoto::Metric::Generic.

double Gyoto::Metric::NumericalMetricLorene::getRmb (  )  const [virtual]

Returns the marginally bound radius Should be implemented in derived classes if useful If called on the base class, returns an error

Reimplemented from Gyoto::Metric::Generic.

double Gyoto::Metric::NumericalMetricLorene::getRms (  )  const [virtual]

Returns the marginally stable (ISCO) radius Should be implemented in derived classes if useful If called on the base class, returns an error

Reimplemented from Gyoto::Metric::Generic.

virtual double Gyoto::Metric::NumericalMetricLorene::getSpecificAngularMomentum ( double  rr  )  const [virtual]

Returns the specific angular momentum l=-u_phi/u_t Should be implemented in derived classes if useful If called on the base class, returns an error

Reimplemented from Gyoto::Metric::Generic.

virtual void Gyoto::Metric::Generic::gmunu ( double  g[4][4],
double const   pos[4]
) const [virtual, inherited]

Metric coefficients.

The default implementation calls double gmunu(const double * x, int mu, int nu) const.

Parameters:
[out] g 4x4 array to store the coeefficients
[in] x 4-position at which to compute the coefficients;
Returns:
Metric coefficient g, at point x

Reimplemented in Gyoto::Metric::KerrKS, and Gyoto::Metric::Minkowski.

double Gyoto::Metric::NumericalMetricLorene::gmunu ( const double  x[4],
int  mu,
int  nu
) const [virtual]

Metric coefficients.

The default implementation calls Metric:: gmunu(double g[4][4], const double * pos) const

Parameters:
x 4-position at which to compute the coefficient;
mu 1st index of coefficient, 03;
nu 2nd index of coefficient, 03;
Returns:
Metric coefficient g, at point x

Reimplemented from Gyoto::Metric::Generic.

void Gyoto::Object::help (  )  const [inherited]

Print (to stdout) some help on this class.

Describe all properties that this instance supports.

virtual void Gyoto::Hook::Teller::hook ( Listener listener  )  [virtual, inherited]

Start listening.

Use from a Hook::Listener object method:

 teller->hook(this)

where "this" is a Listener and "teller" is a Teller.

Use unhook() later to stop listening to a given Teller.

Parameters:
listener pointer to the new listener
double Gyoto::Metric::NumericalMetricLorene::Interpol3rdOrder ( double  tt,
int  indice_time,
double  values[4]
) const

3rd order interpolation routine

Interpolation at order 3 at point tt, the considered function taking the values "values" at time indices "indices".

virtual int Gyoto::Metric::Generic::isStopCondition ( double const   coord[8]  )  const [virtual, inherited]

Check whether integration should stop.

The integrating loop will ask this the Metric through this method whether or not it is happy to continue the integration. Typically, the Metric should answer 0 when everything is fine, 1 when too close to the event horizon, inside the BH...

Parameters:
coord 8-coordinate vector to check.
virtual bool Gyoto::Object::isThreadSafe (  )  const [virtual, inherited]

Whether this class is thread-safe.

Return True if this object is thread-safe, i.e. if an instance and its clone can be used in parallel threads (in the context of Scenery::raytrace()). Known objects which are not thread-safe include Lorene metrics and everything from the Python plug-in.

The default implementation considers that the class itself is thread safe and recurses into the declared properties to check whether they are safe too. Classes that abide to the Object/Property paradigm and are themselves thread-safe have nothing special to do.

Objects that clone children in their copy constructor that are not declared as properties must take these children into account.

Classes that are never thread-safe must declare it. It acn be easily done using GYOTO_OBJECT_THREAD_SAFETY in the class declaration and GYOTO_PROPERTY_THREAD_UNSAFE in the class definition.

void Gyoto::Metric::Generic::kind ( const std::string   )  [protected, inherited]

Set kind_.

kind(const std::string) is protected because, for most Metrics, it should not be changed in runtime. Set kind_

virtual int Gyoto::Metric::NumericalMetricLorene::myrk4 ( double  tt,
const double  coord[7],
double  h,
double  res[7]
) const [virtual]

Runge-Kutta integrator at order 4

int Gyoto::Metric::NumericalMetricLorene::myrk4_adaptive ( Gyoto::Worldline line,
const double  coord[8],
double  lastnorm,
double  normref,
double  coordnew[8],
double  h0,
double &  h1,
double  h1max
) const [virtual]

Adaptive Runge-Kutta

Reimplemented from Gyoto::Metric::Generic.

virtual void Gyoto::Metric::Generic::nullifyCoord ( double  coord[8],
double &  tdot2
) const [virtual, inherited]

Set tdot (coord[4]) such that coord is light-like and return other possible tdot.

Set coord[4] so that the 4-velocity coord[4:7] is lightlike, i.e. of norm 0. There may be up to two solutions. coord[4] is set to the hightest. The lowest can be retrieved in tdot2. Everything is expressed in geometrical units.

Parameters:
[in,out] coord 8-position, coord[4] will be set according to the other elements;
[out] tdot2 will be set to the smallest solution

Reimplemented in Gyoto::Metric::KerrBL.

virtual void Gyoto::Metric::Generic::nullifyCoord ( double  coord[8]  )  const [virtual, inherited]

Set tdot (coord[4]) such that coord is light-like. Everything is in geometrical units.

Set coord[4] so that the 4-velocity coord[4:7] is lightlike, i.e. of norm 0. There may be up to two solutions. coord[4] is set to the hightest. The lowest can be retrieved using nullifyCoord(double coord[8], double& tdot2) const. Everything is expressed in geometrical units.

Parameters:
[in,out] coord 8-position, coord[4] will be set according to the other elements;

Reimplemented in Gyoto::Metric::KerrBL.

virtual void Gyoto::Metric::Generic::observerTetrad ( std::string const   obskind,
double const   pos[4],
double  fourvel[4],
double  screen1[4],
double  screen2[4],
double  screen3[4]
) const [virtual, inherited]

Computes the orthonormal local tetrad of the observer.

Parameters:
obskind input: kind of observer (eg: "ZAMO","KeplerianObserver"...)
pos input: position,
fourvel output: observer 4-velocity (norm -1)
screen1 output: first vector in the screen plane
screen2 output: second vector in the screen plane
screen3 output: vector normal to the screen

Reimplemented in Gyoto::Metric::KerrBL, and Gyoto::Metric::Minkowski.

Property const* Gyoto::Object::property ( std::string const   pname  )  const [inherited]

Find property by name.

Look into the Property list for a Property whose name (or name_false, for a boolean Property) is pname. Return a const pointer to the first such property found, or NULL if none is found.

void Gyoto::Metric::NumericalMetricLorene::reverseR ( double  tt,
double  coord[7]
) const

Reverse spatial vector if going through 0, without horizon

virtual double Gyoto::Metric::Generic::ScalarProd ( const double  pos[4],
const double  u1[4],
const double  u2[4]
) const [virtual, inherited]

Scalar product.

Compute the scalarproduct of the two quadrivectors u1 and u2 in this Metric, at point pos expressed in coordinate system sys.

Parameters:
pos 4-position;
u1 1st quadrivector;
u2 2nd quadrivector;
Returns:
u1*u2

Reimplemented in Gyoto::Metric::KerrBL, and Gyoto::Metric::RotStar3_1.

virtual void Gyoto::Metric::NumericalMetricLorene::setMetricSource (  )  [virtual]

Access functions to get or set private attributes

virtual void Gyoto::Object::setParameter ( Gyoto::Property const &  p,
std::string const &  name,
std::string const &  content,
std::string const &  unit
) [virtual, inherited]

Set parameter by Property (and name).

This function is used when parsing an XML description, if Property (p) of this name is found (i.e. either p.name or p.name_false is equal to name). Implementation should fall-back on calling the direct's parent implementation:

 class A: public Object {};
 class B: public A {
  using B::setParameter;
  virtual void setParameter(Gyoto::Property const &p,
                            std::string name,
                                std::string content,
                                std::string unit);
 };
 void B::setParameter(Gyoto::Property const &p,
                          std::string name,
                          std::string content,
                          std::string unit) {
   if (name=="Duff") doSomething(content, unit);
   else A::setParameter(p, name, content, unit);
 }
Parameters:
p Property that matches name (p.name == name or p.name_false == name)
name XML name of the parameter (XML entity)
content string representation of the value
unit string representation of the unit

Reimplemented in Gyoto::Astrobj::PolishDoughnut.

virtual int Gyoto::Object::setParameter ( std::string  name,
std::string  content,
std::string  unit
) [virtual, inherited]

Set parameter by name.

This function is used when parsing an XML description, if no Property of this name is found. Overriding implementation should fall-back on calling the direct's parent implementation:

 class A: public Object {};
 class B: public A {
  using B::setParameter;
  virtual int setParameter(std::string name,
                            std::string content,
                            std::string unit);
 };
 int B::setParameter(std::string name,
                            std::string content,
                            std::string unit) {
   if (name=="Duff") doSomething(content, unit);
   else return A::setParameter(name, content, unit);
   return 0;  // name was known
 }
Parameters:
name XML name of the parameter (XML entity). This may have a path component, e.g. "Astrobj::Radius", in which case a property named "Astrobj" will be sought in the current object, and setParameter will be called recusrively on this Astrobj with Radius as name.
content string representation of the value
unit string representation of the unit
Returns:
0 if this parameter is known, 1 if it is not.

Reimplemented in Gyoto::Astrobj::EquatorialHotSpot, Gyoto::Metric::KerrKS, Gyoto::Metric::RotStar3_1, and Gyoto::Astrobj::Star.

virtual void Gyoto::Object::setParameters ( Gyoto::FactoryMessenger fmp  )  [virtual, inherited]

Main loop for parsing Properties from XML description.

This function queries the FactoryMessenger for elements to parse, and tries to matche each element to a Property to set it accordingly.

Any class that tries to be buildable from XML must supply a subcontractor (for base classes such as Metric, Astrobj, Spectrum and Spectrometer, it is done as a template that must be specialized for each class).

This subcontractor typically looks somewhat like this:

SmartPointer<Metric::Generic>
Gyoto::Metric::MyKind::Subcontractor(FactoryMessenger* fmp) {
  SmartPointer<MyKind> gg = new MyKind();
  gg -> setParameters(fmp);
  return gg;
}

Although this is discouraged, it is possible to override the following functions to customize how XML entities are parsed:

  • setParameters() if low-level access to the FactoryMessenger is required;
  • setParameter(std::string name, std::string content, std::string unit) to interpret an entity that does not match a Property (e.g. alternative name);
  • setParameter(Gyoto::Property const &p, std::string const &name, std::string const &content, std::string const &unit) to change how a Property is interpreted.

Reimplemented in Gyoto::Astrobj::Generic, Gyoto::Astrobj::Complex, Gyoto::Spectrometer::Complex, Gyoto::Astrobj::EquatorialHotSpot, Gyoto::Astrobj::OscilTorus, Gyoto::Photon, Gyoto::Astrobj::Star, and Gyoto::Spectrometer::Uniform.

virtual double Gyoto::Metric::Generic::SysPrimeToTdot ( const double  coord[4],
const double  v[3]
) const [virtual, inherited]

Compute tdot as a function of dr/dt, dtheta/dt and dphi/dt. Everything is in geometrical units.

Parameters:
coord 4-position (geometrical units);
v 3-velocity dx1/dx0, dx2/dx0, dx3/dx0;
Returns:
tdot = dx0/dtau.
virtual void Gyoto::Hook::Teller::tellListeners (  )  [protected, virtual, inherited]

Call tell() on each hooked Listener.

Whenever a Teller mutates, it should warn any Listener hooked to it using tellListeners().

virtual void Gyoto::Hook::Teller::unhook ( Listener listener  )  [virtual, inherited]

Stop listening.

Use from a Hook::Listener object method:

 teller->unhook(this)

where "this" is a Listener, "teller" is a Teller, and "this" has called teller->hook(this) previously.

Parameters:
listener pointer to the listener
double Gyoto::Metric::Generic::unitLength (  )  const [inherited]

M * G / c^2, M is in kg, unitLength in meters.

Metrics implementations are free to express lengths and distances in whatever unit they see fit (presumably most often geometrical units). This function returns this unit in SI (meters).


Member Data Documentation

double Gyoto::Metric::Generic::delta_max_over_r_ [protected, inherited]

Numerical tuning parameter.

Ensure that delta (the numerical integration step) is never larger than a fraction of the distance between the current location and the center of the coordinate system.

For investigations close to the event horizon, 0.5 is usually fine. If high accuracy is needed long after deflection (weak lensing), then this must be smaller. A good test is to look at a MinDistance map for a FixedStar: it must be smooth.

1 if the metric source provides an acceleration vector

std::string Gyoto::Object::kind_ [protected, inherited]

The "kind" that is output in the XML entity.

E.g. for an Astrobj, fillElement() will ensure

   <Astrobj kind="kind_" ...>...</Astrobj>

is written.

std::vector<std::string> Gyoto::Object::plugins_ [protected, inherited]

The plug-ins that needs to be loaded to access this instance's class.

E.g. for an Astrobj, fillElement() will ensure

   <Astrobj ... plugin="plugins_">...</Astrobj>

is written.

Property list.

This static member is declared automatically by the GYOTO_OBJECT macro and defined automatically by the GYOTO_PROPERTY_START, GYOTO_PROPERTY_END and GYOTO_PROPERTY_* macros.

The list of properties is implemented as a static array of Property instances. The last item in a Property of type Property::empty_t, which evaluates to false, so the list can be considered to be NULL-terminated (it is actually rather false-terminated). This empty_t last item can be a link to another Property list: for instance, the last item in Gyoto::Astrobj::Standard::properties is a link to Gyoto::Astrobj::Generic::properties.

Reimplemented from Gyoto::Metric::Generic.


The documentation for this class was generated from the following file:

Generated on 22 Jul 2017 for Gyoto by  doxygen 1.6.1
