Gyoto::Units::Unit Class Reference

Wrapper around ut_unit from udunits. More...

#include <GyotoConverters.h>

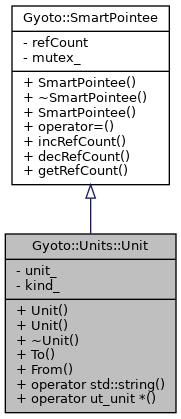

Inheritance diagram for Gyoto::Units::Unit:
Gyoto::SmartPointee

List of all members.

Public Types

typedef Gyoto::SmartPointer
< Gyoto::SmartPointee
Subcontractor_t (Gyoto::FactoryMessenger *, std::vector< std::string > const &)
 A subcontractor builds an object upon order from the Factory.

Public Member Functions

 Unit (const std::string &unit)
 Build Unit described by string.
 Unit (char const *const unit)
 Build Unit described by C string.
 ~Unit ()
 Destructor.
double To (double val, const Unit &from_unit)
 Convert to Unit.
double From (double val, const Unit &to_unit)
 Convert from Unit.
 operator std::string () const
 Cast to string.
 operator ut_unit * () const
 Cast to ut_unit*.
void incRefCount ()
 Increment the reference counter. Warning: Don't mess with the counter.
int decRefCount ()
 Decrement the reference counter and return current value. Warning: Don't mess with the counter.
int getRefCount ()
 Get the current number of references.

Private Attributes

ut_unit * unit_
 the underlying ut_unit (from udunits)
std::string kind_
 the string used to instantiate this unit

Friends

class Gyoto::SmartPointer< Gyoto::Units::Unit >
class Gyoto::Units::Converter

Detailed Description

Wrapper around ut_unit from udunits.

Gyoto::Units::Unit objects usually cast seamlessly to and from udunits2 ut_unit* and std::string.


Member Typedef Documentation

typedef Gyoto::SmartPointer<Gyoto::SmartPointee> Gyoto::SmartPointee::Subcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &) [inherited]

A subcontractor builds an object upon order from the Factory.

Various classes need to provide a subcontractor to be able to instantiate themselves upon order from the Factory. A subcontractor is a function (often a static member function) which accepts a pointer to a FactoryMessenger as unique parameter, communicates with the Factory using this messenger to read an XML description of the object to build, and returns this objet. SmartPointee::Subcontractor_t* is just generic enough a typedef to cast to and from other subcontractor types: Astrobj::Subcontractor_t, Metric::Subcontractor_t, Spectrum::Subcontractor_t. A subcontractor needs to be registered using the relevant Register() function: Astrobj::Register(), Metric::Register(), Spectrum::Register().


Constructor & Destructor Documentation

Gyoto::Units::Unit::Unit ( const std::string &  unit  )

Build Unit described by string.

Throws a Gyoto::Error if anything goes wrong.

Parameters:
unit string description of the unit, e.g. "mJy/sr2" or "sunmass".
Gyoto::Units::Unit::Unit ( char const *const   unit  )

Build Unit described by C string.

Throws a Gyoto::Error if anything goes wrong.

Parameters:
unit char const * const description of the unit, e.g. "mJy/sr2" or "sunmass".
Gyoto::Units::Unit::~Unit (  )

Destructor.

Frees unit_.


Member Function Documentation

double Gyoto::Units::Unit::From ( double  val,
const Unit to_unit
)

Convert from Unit.

Parameters:
val double to convert
to_unit Unit to which to convert
Returns:
value converted to "to_unit".
Gyoto::Units::Unit::operator std::string (  )  const

Cast to string.

Returns:
kind_
Gyoto::Units::Unit::operator ut_unit * (  )  const

Cast to ut_unit*.

Returns:
unit_
double Gyoto::Units::Unit::To ( double  val,
const Unit from_unit
)

Convert to Unit.

Parameters:
val double to convert
from_unit Unit from which to convert
Returns:
value converted to unit_.

The documentation for this class was generated from the following file:
