Class for reading or writing data in FITS file. The data stored should be 1D array(s). More...
#include <GyotoFitsRW.h>

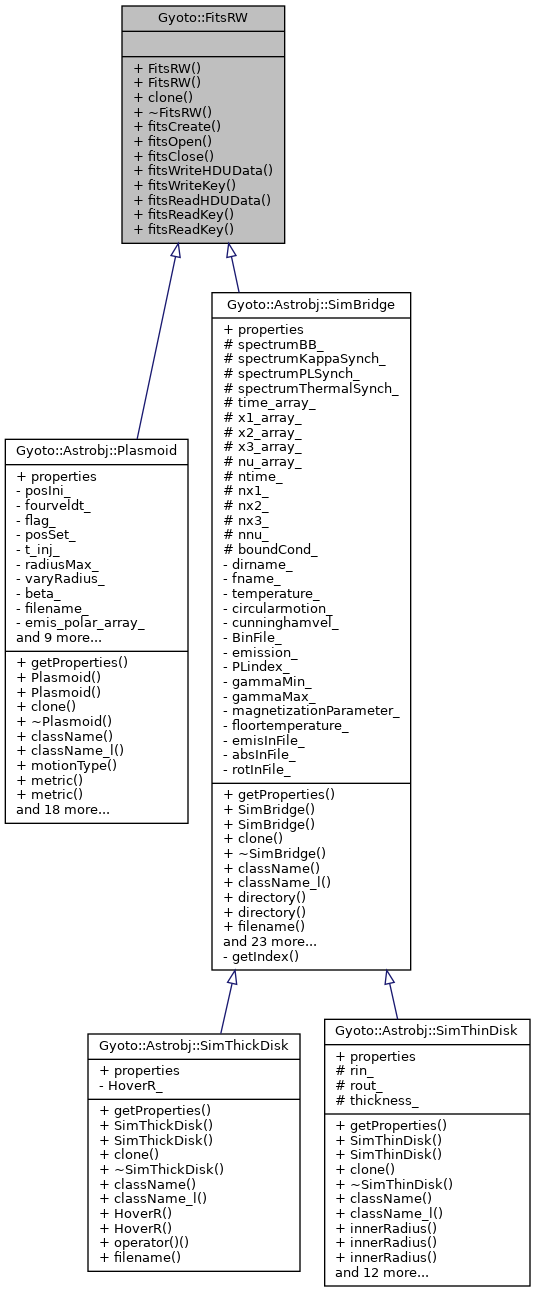

Inheritance diagram for Gyoto::FitsRW:
Public Member Functions | |
| FitsRW () | |
| Constructor. | |
| FitsRW (const FitsRW &) | |
| Copy constructor. | |
| virtual FitsRW * | clone () const |
| virtual | ~FitsRW () |
| Destructor. | |
| fitsfile * | fitsCreate (std::string const filename) const |
| Creates a FITS file with dummy primary HDU. More... | |
| fitsfile * | fitsOpen (std::string const filename) const |
| Open a fits file. More... | |
| void | fitsClose (fitsfile *fptr) const |
| Closes a fits file referred to by a fitsfile pointer. More... | |
| void | fitsWriteHDUData (fitsfile *const fptr, std::string const extname, double *const src, long const nelements) const |
| Writes 1D array in FITS files. More... | |
| void | fitsWriteKey (fitsfile *const fptr, std::string const key, double value, std::string const hdu="PRIMARY") const |
| Writes a key in the header of a given HDU (by default "PRIMARY") More... | |
| double * | fitsReadHDUData (fitsfile *const fptr, std::string const extname, double *dest, long expectedSize) const |
| Read 1D array in FITS files. More... | |
| double | fitsReadKey (fitsfile *const fptr, std::string const key, std::string const hdu) const |
| Read a specific key of the HDU with a specific 'extname'. More... | |
| double | fitsReadKey (fitsfile *const fptr, std::string const key, int const hdu_num=1) const |
| Read a specific key of the HDU defined by its number (by default 1 equivalent ot the "PRIMARY" HDU) More... | |
Detailed Description
Class for reading or writing data in FITS file. The data stored should be 1D array(s).
Member Function Documentation
◆ fitsClose()
| void Gyoto::FitsRW::fitsClose | ( | fitsfile * | fptr | ) | const |
Closes a fits file referred to by a fitsfile pointer.
- Parameters
-
fptr fitsfile pointer to FITS file to be closed
◆ fitsCreate()
| fitsfile* Gyoto::FitsRW::fitsCreate | ( | std::string const | filename | ) | const |
Creates a FITS file with dummy primary HDU.
Opens a new fits file referred to by a fitsfile pointer and fills the primary HDU by a single pixel equal to 0. Returns the fitsfile pointer to the new FITS file.
- Parameters
-
filename Name of fits file to be created
◆ fitsOpen()
| fitsfile* Gyoto::FitsRW::fitsOpen | ( | std::string const | filename | ) | const |
Open a fits file.
- Parameters
-
filename name of the FITS file to be open
◆ fitsReadHDUData()
| double* Gyoto::FitsRW::fitsReadHDUData | ( | fitsfile *const | fptr, |
| std::string const | extname, | ||
| double * | dest, | ||
| long | expectedSize | ||
| ) | const |
Read 1D array in FITS files.
- Parameters
-
fptr fitsfile pointer to FITS file extname Name of extension to be read
◆ fitsReadKey() [1/2]
| double Gyoto::FitsRW::fitsReadKey | ( | fitsfile *const | fptr, |
| std::string const | key, | ||
| std::string const | hdu | ||
| ) | const |
Read a specific key of the HDU with a specific 'extname'.
- Parameters
-
fptr fitsfile pointer to FITS file key Name of the key to be read hdu HDU extname where to search for the key
◆ fitsReadKey() [2/2]
| double Gyoto::FitsRW::fitsReadKey | ( | fitsfile *const | fptr, |
| std::string const | key, | ||
| int const | hdu_num = 1 |
||
| ) | const |
Read a specific key of the HDU defined by its number (by default 1 equivalent ot the "PRIMARY" HDU)
- Parameters
-
fptr fitsfile pointer to FITS file key Name of the key to be read hdu_num HDU number where to search for the key
◆ fitsWriteHDUData()
| void Gyoto::FitsRW::fitsWriteHDUData | ( | fitsfile *const | fptr, |
| std::string const | extname, | ||
| double *const | src, | ||
| long const | nelements | ||
| ) | const |
Writes 1D array in FITS files.
- Parameters
-
fptr fitsfile pointer to FITS file extname Name of extension to be written src Data to be written in extension ndim numer of axes of src len of each axes
◆ fitsWriteKey()
| void Gyoto::FitsRW::fitsWriteKey | ( | fitsfile *const | fptr, |
| std::string const | key, | ||
| double | value, | ||
| std::string const | hdu = "PRIMARY" |
||
| ) | const |
Writes a key in the header of a given HDU (by default "PRIMARY")
- Parameters
-
fptr fitsfile pointer to FITS file key Name of the key to be stored value Value of the key to be stored hdu HDU where to store the key, by default "PRIMARY"
The documentation for this class was generated from the following file:
