Class for reading data stored in a 2D grid. More...
#include <GyotoFitsRW.h>

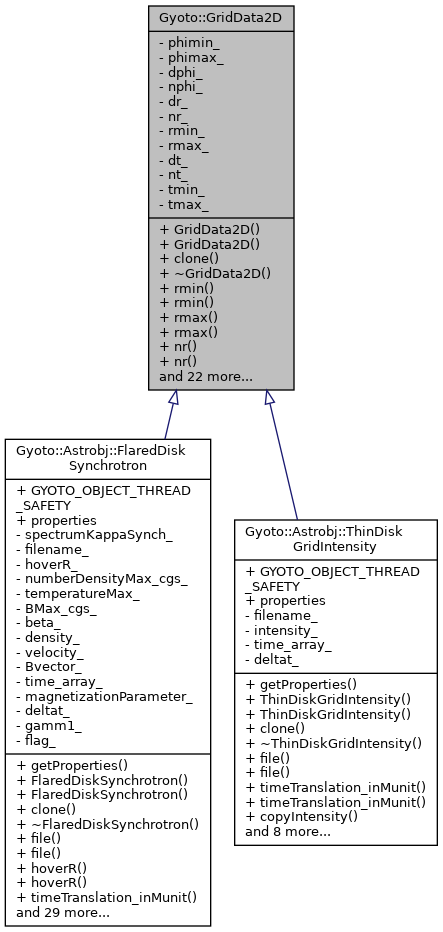

Inheritance diagram for Gyoto::GridData2D:
Public Member Functions | |
| GridData2D () | |
| Constructor. | |
| GridData2D (const GridData2D &) | |
| Copy constructor. | |
| virtual GridData2D * | clone () const |
| virtual | ~GridData2D () |
| Destructor. | |
| void | rmin (double rmn) |
| double | rmin () const |
| void | rmax (double rmx) |
| double | rmax () const |
| void | nr (size_t nn) |
| size_t | nr () const |
| void | dr (double dd) |
| double | dr () const |
| void | phimin (double phimn) |
| double | phimin () const |
| void | phimax (double phimx) |
| double | phimax () const |
| void | dphi (double dd) |
| double | dphi () const |
| void | tmin (double tmn) |
| double | tmin () const |
| void | tmax (double tmx) |
| double | tmax () const |
| void | nt (size_t nn) |
| size_t | nt () const |
| void | nphi (size_t nn) |
| size_t | nphi () const |
| virtual std::vector< size_t > | fitsReadHDU (fitsfile *fptr, std::string extname, double *&dest, size_t length=0) |
| fitsfile * | fitsCreate (std::string filename) |
| Creates a FITS file with dummy primary HDU. More... | |
| void | fitsClose (fitsfile *fptr) |
| Closes a fits file referred to by a fitsfile pointer. More... | |
| void | fitsWriteHDU (fitsfile *fptr, std::string extname, double *src, size_t length=0) |
| Writes specific HDU in FITS files. More... | |
| void | getIndices (size_t i[3], double const tt, double const phi, double const rr, double *const time_array=NULL) const |
| double | interpolate (double tt, double phi, double rr, double *const array, double *const time_array=NULL) const |
Private Attributes | |
| double | phimin_ |
| Minimum phi in grid. | |
| double | phimax_ |
| Maximum phi in grid. | |
| double | dphi_ |
| δφ between two grid columns | |
| size_t | nphi_ |
| Grid size in the φ direction. | |
| double | dr_ |
| Radius step. | |
| size_t | nr_ |
| Grid size in the r direction. | |
| double | rmin_ |
| Minimum r in grid. | |
| double | rmax_ |
| Maximum r in grid. | |
| double | dt_ |
| Time step, if not constant would be ignored. | |
| size_t | nt_ |
| Grid size in the t direction. | |
| double | tmin_ |
| Minimum t in grid. | |
| double | tmax_ |
| Maximum t in grid. | |
Detailed Description
Class for reading data stored in a 2D grid.
Member Function Documentation
◆ fitsClose()
| void Gyoto::GridData2D::fitsClose | ( | fitsfile * | fptr | ) |
Closes a fits file referred to by a fitsfile pointer.
- Parameters
-
fptr fitsfile pointer to FITS file to be closed
◆ fitsCreate()
| fitsfile* Gyoto::GridData2D::fitsCreate | ( | std::string | filename | ) |
Creates a FITS file with dummy primary HDU.
Opens a new fits file referred to by a fitsfile pointer and fills the primary HDU by a single pixel equal to 0. Returns the fitsfile pointer to the new FITS file.
- Parameters
-
filename Name of fits file to be created
◆ fitsWriteHDU()
| void Gyoto::GridData2D::fitsWriteHDU | ( | fitsfile * | fptr, |
| std::string | extname, | ||
| double * | src, | ||
| size_t | length = 0 |
||
| ) |
Writes specific HDU in FITS files.
- Parameters
-
fptr fitsfile pointer to FITS file extname Name of extension to be written src Data to be written in extension length Data has shape {nr_,nphi_,nt_} if length is 0 (default; used for storing scalar data), or {nr_,nphi_,nt_,length} if length is not 0 (used for storing vector data, e.g.: length=2 - (v_r, v_phi) - for velocity)
The documentation for this class was generated from the following file:
