GyotoRegister.h File Reference

Gyoto registers. More...

#include <string>
#include <glob.h>
#include <filesystem>
#include "GyotoSmartPointer.h"

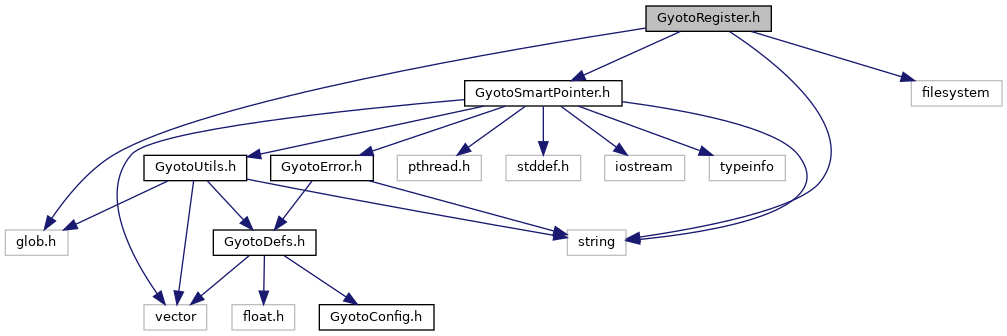

Include dependency graph for GyotoRegister.h:

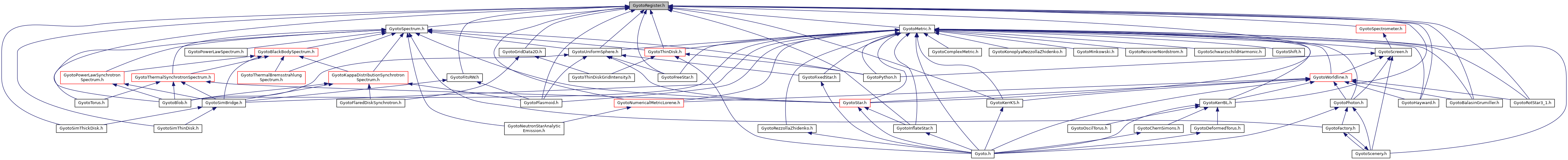

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Gyoto::Register::Entry
	Entry in a register (or a full register) More...

Namespaces
	Gyoto
	Namespace for the Gyoto library.
	Gyoto::Register
	Gyoto registers.

Macros
#define	GYOTO_REGISTEREDPLUGINSSLASHKINDS(space)
#define	GYOTO_GETSUBCONTRACTOR(space)
	Defines the getSubcontractor() function for namespace space. More...

Functions
void	Gyoto::Register::init (char const *pluglist=NULL)
	Initialise the various registers. More...
void	Gyoto::Register::list ()
	List the various registers.
void *	Gyoto::loadPlugin (char const *const plugname, int nofail=0)
	Load a plugin by name. More...
bool	Gyoto::havePlugin (std::string plugname)
	Check whether a given plug-in has already been loaded. More...
void	Gyoto::requirePlugin (std::string plugname, int nofail=0)
	Load a plugin by name, only if not loaded yet. More...
std::vector< std::string >	Gyoto::pluginPath ()
	Get a copy of the plug-in path.
void	Gyoto::pluginPath (const std::vector< std::string > &v)
	Set the plug-in path.

Detailed Description

Gyoto registers.

Gyoto::Register::Entry instances are used to map kind names to Gyoto::SmartPointee::Subcontractor_t functions used to instantiate objects from XML files through the Gyoto::Factory.

Macro Definition Documentation

GYOTO_GETSUBCONTRACTOR

#define GYOTO_GETSUBCONTRACTOR

(

space

)

Defines the getSubcontractor() function for namespace space.

This macro is called for instance to define Gyoto::Metric::getSubcontractor(). A function defined this way will:

• load any mandatory (i.e. not prepended with "fallback:") plug-in listed in plugin using requirePlugin();
• if the Gyoto::space::Register_ register is still empty at this point, load fallback (i.e. prepended with "fallback:") plug-ins listed in plugin until it is not anymore;
• if plugin is empty of contains only fallback plug-ins, look for a subcontractor matching name in the register; if a match is found, insert the name of the corresponding plug-in in plugin and return a pointer to the matching subcontractor;
• look for a subcontractor matching name and one mandatory plug-in from plugin in the relevant register; if a match is found, return the subcontractor;
• for each fallback plugin plg:
  • try to load and look for a subcontractor matching name and plg;
  • try to find a file that matches plg as a glob pattern, if one exists, try to load it as a plug-in and look for a subcontractor matching pname is it;
  • try to find a file that matches plg as a glob pattern, if one exists, try to load it as a plug-in and look for a subcontractor matching pname is it;
  • try to find a file that matches <directory>/libgyoto-<plg>.so for every directory in the plug-in path. If such a file exists, try to load it as a plug-in and look for a subcontractor matching pname is it; At any point, if a matching subcontracting subcontractor is found, return it.

Else,

• if errmode is 1, return NULL;
• if errmode is 0, throw a Gyoto::Error.

Parameters

[in]

space

a Gyoto namespace such as Metric, Astrobj, Spectrum or Spectrometer.

GYOTO_REGISTEREDPLUGINSSLASHKINDS

#define GYOTO_REGISTEREDPLUGINSSLASHKINDS

(

space

)

Value:

std::vector<std::string>                                                \
  Gyoto::space::Generic::registeredPluginsSlashKinds() {                \
    std::vector<std::string> retval;                                    \
    if (Gyoto::space::Register_)                                        \
      Gyoto::space::Register_->pluginsSlashNames(retval);               \
    return retval;                                                      \
  }
