Obsolete: Home-brewed integrator. More...

#include <GyotoWorldline.h>

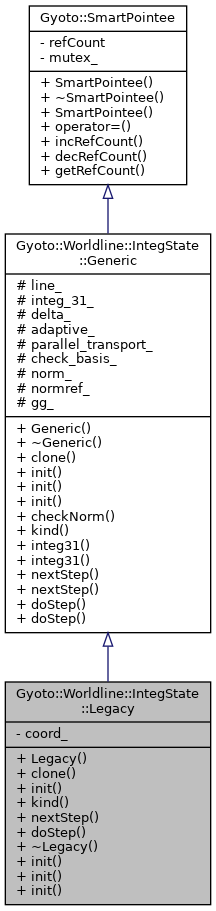

Inheritance diagram for Gyoto::Worldline::IntegState::Legacy:

Public Types
typedef Gyoto::SmartPointer< Gyoto::SmartPointee >	Subcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &)
	A subcontractor builds an object upon order from the Factory. More...

Public Member Functions
	Legacy (Worldline *parent)
	Constructor.

Legacy *	clone (Worldline *newparent) const
	Deep copy. More...

void	init (Worldline *line, const state_t &coord, const double delta)

virtual std::string	kind ()
	Return the integrator kind.

virtual int	nextStep (state_t &coord, double &tau, double h1max=1e6)
	Make one step. More...

virtual void	doStep (state_t const &coordin, double step, state_t &coordout)
	Make one step of exactly this size. More...

virtual void	init (Worldline *line, const state_t &coord, const double delta)

virtual void	init (Worldline line, const double coord, const double delta)=delete
	Obsolete, update your code.

virtual void	init ()
	Cache whatever needs to be cached. More...

virtual void	init (Worldline line, const double coord, const double delta)=delete
	Obsolete, update your code.

virtual void	init ()
	Cache whatever needs to be cached. More...

virtual void	checkNorm (double coord[8])
	Check norm. More...

void	integ31 (bool integ)
	Defines the kind of geodesic equation to integrate (3+1, 4D)

bool	integ31 () const

virtual int	nextStep (double *coord, double h1max=GYOTO_DEFAULT_DELTA_MAX)=delete
	Obsolete, update your code.

virtual void	doStep (double const coordin[8], double step, double coordout[8])=delete
	Obsolete, update your code.

void	incRefCount ()
	Increment the reference counter. Warning: Don't mess with the counter.

int	decRefCount ()
	Decrement the reference counter and return current value. Warning: Don't mess with the counter.

int	getRefCount ()
	Get the current number of references.

Protected Attributes
Worldline *	line_
	Worldline that we are integrating. More...

bool	integ_31_
	Whether to integrate the 3+1 equation of geodesics instead of the 4D one.

double	delta_
	Integration step (current in case of adaptive_).

bool	adaptive_
	Whether to use an adaptive step.

bool	parallel_transport_
	Whether to parallel-transport base vectors.

double	norm_
	Current norm of the 4-velocity.

double	normref_

Gyoto::SmartPointer< Gyoto::Metric::Generic >	gg_
	The Metric in this end of the Universe. More...

Private Attributes
state_t	coord_
	Previously determined coordinate.

Friends
class	Gyoto::SmartPointer< Gyoto::Worldline::IntegState::Legacy >

Detailed Description

Obsolete: Home-brewed integrator.

Will be removed soon.

The integrator used by this IntegState::Generic implementation is actually implemented in Metric::Generic::myrk4_adaptive(). It does not use most of the tuning parameters Worldline, it uses the homonym parameters in Metric::Generic instead. to use this integrator, pass "Legacy" to Worldline::integrator(std::string type).

Member Typedef Documentation

◆ Subcontractor_t

typedef Gyoto::SmartPointer<Gyoto::SmartPointee> Gyoto::SmartPointee::Subcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &)

inherited

A subcontractor builds an object upon order from the Factory.

Various classes need to provide a subcontractor to be able to instantiate themselves upon order from the Factory. A subcontractor is a function (often a static member function) which accepts a pointer to a FactoryMessenger as unique parameter, communicates with the Factory using this messenger to read an XML description of the object to build, and returns this objet. SmartPointee::Subcontractor_t* is just generic enough a typedef to cast to and from other subcontractor types: Astrobj::Subcontractor_t, Metric::Subcontractor_t, Spectrum::Subcontractor_t. A subcontractor needs to be registered using the relevant Register() function: Astrobj::Register(), Metric::Register(), Spectrum::Register().

Member Function Documentation

◆ checkNorm()

virtual void Gyoto::Worldline::IntegState::Generic::checkNorm ( double coord[8] )

virtualinherited

Check norm.

Issue a warning using GYOTO_SEVERE if norm is drifting. nextStep() implementations should call it.

◆ clone()

Legacy* Gyoto::Worldline::IntegState::Legacy::clone ( Worldline * newparent ) const

virtual

Deep copy.

Derived classes must implement it

Implements Gyoto::Worldline::IntegState::Generic.

◆ doStep()

virtual void Gyoto::Worldline::IntegState::Legacy::doStep	(	state_t const &	coordin,
		double	step,
		state_t &	coordout
	)

virtual

Make one step of exactly this size.

doStep() is meant to refine a computation made using nextStep(). In particular, there is no checking for norm conservation.

Parameters

[in]	coordin	current position-velocity;
[in]	step	exact step to use.
[out]	coordout	next position-velocity;

Implements Gyoto::Worldline::IntegState::Generic.

◆ init() [1/4]

virtual void Gyoto::Worldline::IntegState::Generic::init ( )

virtualinherited

Cache whatever needs to be cached.

This is called by all the methods in Worldline each time an member that could be cached in Worldline::state_ changes. Therefore, user code should normally not have to call it.

Reimplemented in Gyoto::Worldline::IntegState::Boost.

◆ init() [2/4]

virtual void Gyoto::Worldline::IntegState::Generic::init

Cache whatever needs to be cached.

This is called by all the methods in Worldline each time an member that could be cached in Worldline::state_ changes. Therefore, user code should normally not have to call it.

◆ init() [3/4]

virtual void Gyoto::Worldline::IntegState::Generic::init

Parameters

line	The Worldline that we are integrating. Sets: Worldline::line_, Worldline::gg_, Worldline::adaptive_.
coord	Initial coordinate.
delta	Integration step. Sign determines direction.

◆ init() [4/4]

void Gyoto::Worldline::IntegState::Legacy::init	(	Worldline *	line,
		const state_t &	coord,
		const double	delta
	)

virtual

Parameters

line	The Worldline that we are integrating. Sets: Worldline::line_, Worldline::gg_, Worldline::adaptive_.
coord	Initial coordinate.
delta	Integration step. Sign determines direction.

Reimplemented from Gyoto::Worldline::IntegState::Generic.

◆ nextStep()

virtual int Gyoto::Worldline::IntegState::Legacy::nextStep	(	state_t &	coord,
		double &	tau,
		double	h1max = `1e6`
	)

virtual

Make one step.

Parameters

[out]	coord	Next position-velocity;
[out]	tau	Next proper time or affine parameter
[in]	h1max	maximum step in case of adaptive integration

Implements Gyoto::Worldline::IntegState::Generic.

Member Data Documentation

◆ gg_

Gyoto::SmartPointer<Gyoto::Metric::Generic> Gyoto::Worldline::IntegState::Generic::gg_

protectedinherited

The Metric in this end of the Universe.

Taken from Worldline::line_, never updated.

◆ line_

Worldline* Gyoto::Worldline::IntegState::Generic::line_

protectedinherited

Worldline that we are integrating.

Beware this is not a SmartPointer. Make sure line_ still exists when calling nestStep().

◆ normref_

double Gyoto::Worldline::IntegState::Generic::normref_

protectedinherited

Initial norm of the 4-velocity.

The documentation for this class was generated from the following file:

GyotoWorldline.h
