Gyoto::Spectrum::KappaDistributionSynchrotron Class Reference

Kappa-distribution synchrotron spectrum from Pandya et al. (2016) More...

#include <GyotoKappaDistributionSynchrotronSpectrum.h>

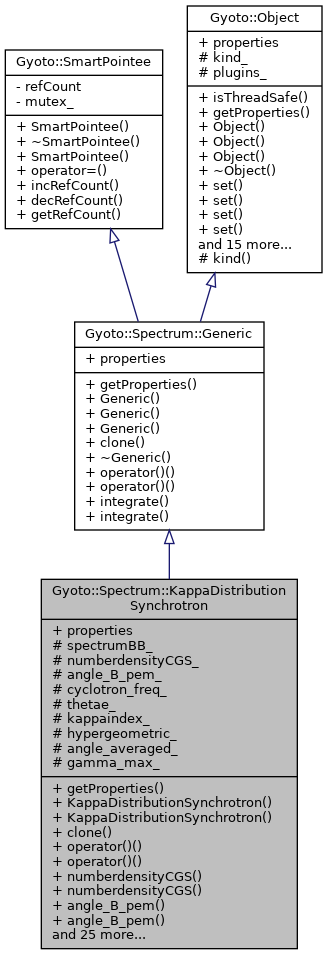

Inheritance diagram for Gyoto::Spectrum::KappaDistributionSynchrotron:
Gyoto::Spectrum::Generic Gyoto::SmartPointee Gyoto::Object

Public Types

typedef Gyoto::SmartPointer< Gyoto::SmartPointeeSubcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &)
 A subcontractor builds an object upon order from the Factory. More...


Public Member Functions

virtual Property const * getProperties () const
 Get list of properties. More...

 KappaDistributionSynchrotron (const KappaDistributionSynchrotron &)

virtual KappaDistributionSynchrotronclone () const
 Cloner.

virtual double operator() (double nu) const

virtual double operator() (double nu, double, double ds) const

double numberdensityCGS () const

void numberdensityCGS (double rho)

double angle_B_pem () const

void angle_B_pem (double aa)

double cyclotron_freq () const

void cyclotron_freq (double ff)

double thetae () const

void thetae (double th)

double kappaindex () const

void kappaindex (double ind)

double hypergeometric () const

void hypergeometric (double hh)

bool angle_averaged () const

void angle_averaged (bool ang)

double jnuCGS (double nu) const

double alphanuCGS (double nu) const

void radiativeQ (double jnu[], double anu[], double const nu_ems[], size_t nbnu)

const std::string kind () const
 Get spectrum kind.

virtual double integrate (double nu1, double nu2)
 Integrate optically thick I_nu. More...

virtual double integrate (double nu1, double nu2, const Spectrum::Generic *opacity, double ds)
 Integrate optically thin I_nu. More...

void incRefCount ()
 Increment the reference counter. Warning: Don't mess with the counter.

int decRefCount ()
 Decrement the reference counter and return current value. Warning: Don't mess with the counter.

int getRefCount ()
 Get the current number of references.

virtual bool isThreadSafe () const
 Whether this class is thread-safe. More...

void set (Property const &p, Value val)
 Set Value of a Property.

void set (Property const &p, Value val, std::string const &unit)
 Set Value (expressed in unit) of a Property.

void set (std::string const &pname, Value val)
 Set Value of a Property.

void set (std::string const &pname, Value val, std::string const &unit)
 Set Value (expressed in unit) of a Property.

Value get (Property const &p) const
 Get Value of a Property.

Value get (std::string const &pname) const
 Get Value of a Property.

Value get (Property const &p, std::string const &unit) const
 Get Value of a Property, converted to unit.

Value get (std::string const &pname, std::string const &unit) const
 Get Value of a Property, converted to unit.

Property const * property (std::string const pname) const
 Find property by name. More...

virtual void fillProperty (Gyoto::FactoryMessenger *fmp, Property const &p) const
 Output a single Property to XML. More...

virtual void fillElement (Gyoto::FactoryMessenger *fmp) const
 Fill the XML element for this Object. More...

virtual void setParameters (Gyoto::FactoryMessenger *fmp)
 Main loop for parsing Properties from XML description. More...

virtual int setParameter (std::string name, std::string content, std::string unit)
 Set parameter by name. More...

virtual void setParameter (Gyoto::Property const &p, std::string const &name, std::string const &content, std::string const &unit)
 Set parameter by Property (and name) More...

std::string describeProperty (Gyoto::Property const &p) const
 Format desrciption for a property. More...

void help () const
 Print (to stdout) some help on this class. More...


Static Public Attributes

static GYOTO_OBJECT Property const properties []


Protected Attributes

SmartPointer< Spectrum::BlackBodyspectrumBB_
 blackbody emission

double numberdensityCGS_
 Number density in CGS UNITS (careful)

double angle_B_pem_
 Angle between Bfield and emission direction (rad)

double cyclotron_freq_
 Cyclotron frequency (e*B / 2*pi*me*c)

double thetae_
 Dimensionless electron temperature.

double kappaindex_
 Kappa distribution index.

double hypergeometric_
 Hypergeometric function evaluation.

bool angle_averaged_
 Boolean for angle averaging.

std::string kind_
 The "kind" that is output in the XML entity. More...

std::vector< std::string > plugins_
 The plug-ins that needs to be loaded to access this instance's class. More...


Friends

class Gyoto::SmartPointer< Gyoto::Spectrum::KappaDistributionSynchrotron >


Detailed Description

Kappa-distribution synchrotron spectrum from Pandya et al. (2016)

Example XML entity:

<Spectrum kind="KappaDistributionSynchrotron">
</Spectrum>

Member Typedef Documentation

◆ Subcontractor_t

typedef Gyoto::SmartPointer<Gyoto::SmartPointee> Gyoto::SmartPointee::Subcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &)
inherited

A subcontractor builds an object upon order from the Factory.

Various classes need to provide a subcontractor to be able to instantiate themselves upon order from the Factory. A subcontractor is a function (often a static member function) which accepts a pointer to a FactoryMessenger as unique parameter, communicates with the Factory using this messenger to read an XML description of the object to build, and returns this objet. SmartPointee::Subcontractor_t* is just generic enough a typedef to cast to and from other subcontractor types: Astrobj::Subcontractor_t, Metric::Subcontractor_t, Spectrum::Subcontractor_t. A subcontractor needs to be registered using the relevant Register() function: Astrobj::Register(), Metric::Register(), Spectrum::Register().

Member Function Documentation

◆ alphanuCGS()

double Gyoto::Spectrum::KappaDistributionSynchrotron::alphanuCGS ( double  nu) const

Returns the absorption coefficient alpha_nu in cgs units [cm^-1]

Parameters
nufrequency in Hz

◆ describeProperty()

std::string Gyoto::Object::describeProperty ( Gyoto::Property const &  p) const
inherited

Format desrciption for a property.

Returns a string containing the name(s) and type of the property, as well as whether it supports unit.

◆ fillElement()

virtual void Gyoto::Object::fillElement ( Gyoto::FactoryMessenger fmp) const
virtualinherited

Fill the XML element for this Object.

The base implementation simply calls fillProperty() for each Property defined for the Object.

Derived classes should avoid overriding fillElement(). It may make sense occasionally, e.g. to make sure that the metric is output first.

To customize how a given Property is rendered, it is better to override fillProperty().

If this method is overridden, the implementation should in general call fillElement() on the direct base.

Reimplemented in Gyoto::Scenery, Gyoto::Spectrometer::Complex, Gyoto::Astrobj::Complex, and Gyoto::Metric::Complex.

◆ fillProperty()

virtual void Gyoto::Object::fillProperty ( Gyoto::FactoryMessenger fmp,
Property const &  p
) const
virtualinherited

Output a single Property to XML.

The base implementation decides what to do based on the p.type. The format matches how setParameters() an setParameter() would interpret the XML descition.

Overriding this method should be avoided, but makes sense in some cases (for instance Screen::fillProperty() selects a different unit for Distance based on its magnitude, so that stellar sizes are expressed in solar radii while smaller sizes can be expressed in meters and larger sizes in parsecs).

Overriding implementation should fall-back on calling the implementation in the direct parent class:

class A: public Object {};
class B: public A {
using B::setParameter;
Property const &p) const ;
};
void B::fillProperty(Gyoto::FactoryMessenger *fmp,
Property const &p) const {
if (name=="Duff") fmp->doSomething();
else A::fillProperty(fmp, p);
}

Reimplemented in Gyoto::Screen, Gyoto::Scenery, Gyoto::Astrobj::Star, Gyoto::Spectrometer::Uniform, Gyoto::Astrobj::PolishDoughnut, Gyoto::Astrobj::Disk3D, Gyoto::Astrobj::PatternDisk, Gyoto::Astrobj::DirectionalDisk, Gyoto::Astrobj::EquatorialHotSpot, Gyoto::Astrobj::XillverReflection, Gyoto::Metric::Shift, and Gyoto::Astrobj::NeutronStarModelAtmosphere.

◆ getProperties()

virtual Property const* Gyoto::Spectrum::KappaDistributionSynchrotron::getProperties ( ) const
virtual

Get list of properties.

This method is declared automatically by the GYOTO_OBJECT macro and defined automatically by the GYOTO_PROPERTY_END macro.

Reimplemented from Gyoto::Spectrum::Generic.

◆ help()

void Gyoto::Object::help ( ) const
inherited

Print (to stdout) some help on this class.

Describe all properties that this instance supports.

◆ integrate() [1/2]

virtual double Gyoto::Spectrum::Generic::integrate ( double  nu1,
double  nu2
)
virtualinherited

Integrate optically thick I_nu.

See operator()(double nu) const

Parameters
nu1,nu2boundaries for the integration
Returns
I, the integral of I_nu between nu1 and nu2

Reimplemented in Gyoto::Spectrum::Python.

◆ integrate() [2/2]

virtual double Gyoto::Spectrum::Generic::integrate ( double  nu1,
double  nu2,
const Spectrum::Generic opacity,
double  ds
)
virtualinherited

Integrate optically thin I_nu.

See operator()(double nu, double opacity, double ds) const

Parameters
nu1,nu2boundaries for the integration
opacitythe frequency-dependent opacity law given as a pointer to a Gyoto::Spectrum::Generic sub-class instance
dsthe element length for spatial integration
Returns
I, the integral of I_nu between nu1 and nu2

◆ isThreadSafe()

virtual bool Gyoto::Object::isThreadSafe ( ) const
virtualinherited

Whether this class is thread-safe.

Return True if this object is thread-safe, i.e. if an instance and its clone can be used in parallel threads (in the context of Scenery::raytrace()). Known objects which are not thread-safe include Lorene metrics and everything from the Python plug-in.

The default implementation considers that the class itself is thread safe and recurses into the declared properties to check whether they are safe too. Classes that abide to the Object/Property paradigm and are themselves thread-safe have nothing special to do.

Objects that clone children in their copy constructor that are not declared as properties must take these children into account.

Classes that are never thread-safe must declare it. It acn be easily done using GYOTO_OBJECT_THREAD_SAFETY in the class declaration and GYOTO_PROPERTY_THREAD_UNSAFE in the class definition.

◆ jnuCGS()

double Gyoto::Spectrum::KappaDistributionSynchrotron::jnuCGS ( double  nu) const

Returns the emission coefficient j_nu in cgs units i.e. erg cm^-3 s^-1 ster^-1 Hz^-1

Parameters
nufrequency in Hz

◆ operator()() [1/2]

virtual double Gyoto::Spectrum::KappaDistributionSynchrotron::operator() ( double  nu) const
virtual

This function returns the optically thick Inu which is not defined here, returns an error

Parameters
nufrequency in Hz

Implements Gyoto::Spectrum::Generic.

◆ operator()() [2/2]

virtual double Gyoto::Spectrum::KappaDistributionSynchrotron::operator() ( double  nu,
double  ,
double  ds
) const
virtual

This function returns the optically thin increment to intensity dI_nu = j_nu*ds*exp(-alpha_nu*ds) in SI units

Parameters
nufrequency in Hz
dslength element in SI (careful to this)

Reimplemented from Gyoto::Spectrum::Generic.

◆ property()

Property const* Gyoto::Object::property ( std::string const  pname) const
inherited

Find property by name.

Look into the Property list for a Property whose name (or name_false, for a boolean Property) is pname. Return a const pointer to the first such property found, or NULL if none is found.

◆ radiativeQ()

void Gyoto::Spectrum::KappaDistributionSynchrotron::radiativeQ ( double  jnu[],
double  anu[],
double const  nu_ems[],
size_t  nbnu
)

Returns the emission and absorption coef in SI

◆ setParameter() [1/2]

virtual int Gyoto::Object::setParameter ( std::string  name,
std::string  content,
std::string  unit
)
virtualinherited

Set parameter by name.

This function is used when parsing an XML description, if no Property of this name is found. Overriding implementation should fall-back on calling the direct's parent implementation:

class A: public Object {};
class B: public A {
using B::setParameter;
virtual int setParameter(std::string name,
std::string content,
std::string unit);
};
int B::setParameter(std::string name,
std::string content,
std::string unit) {
if (name=="Duff") doSomething(content, unit);
else return A::setParameter(name, content, unit);
return 0; // name was known
}
Parameters
nameXML name of the parameter (XML entity). This may have a path component, e.g. "Astrobj::Radius", in which case a property named "Astrobj" will be sought in the current object, and setParameter will be called recusrively on this Astrobj with Radius as name.
contentstring representation of the value
unitstring representation of the unit
Returns
0 if this parameter is known, 1 if it is not.

Reimplemented in Gyoto::Astrobj::Star, Gyoto::Metric::RotStar3_1, Gyoto::Metric::KerrKS, and Gyoto::Astrobj::EquatorialHotSpot.

◆ setParameter() [2/2]

virtual void Gyoto::Object::setParameter ( Gyoto::Property const &  p,
std::string const &  name,
std::string const &  content,
std::string const &  unit
)
virtualinherited

Set parameter by Property (and name)

This function is used when parsing an XML description, if Property (p) of this name is found (i.e. either p.name or p.name_false is equal to name). Implementation should fall-back on calling the direct's parent implementation:

class A: public Object {};
class B: public A {
using B::setParameter;
virtual void setParameter(Gyoto::Property const &p,
std::string name,
std::string content,
std::string unit);
};
void B::setParameter(Gyoto::Property const &p,
std::string name,
std::string content,
std::string unit) {
if (name=="Duff") doSomething(content, unit);
else A::setParameter(p, name, content, unit);
}
Parameters
pProperty that matches name (p.name == name or p.name_false == name)
nameXML name of the parameter (XML entity)
contentstring representation of the value
unitstring representation of the unit

Reimplemented in Gyoto::Astrobj::PolishDoughnut.

◆ setParameters()

virtual void Gyoto::Object::setParameters ( Gyoto::FactoryMessenger fmp)
virtualinherited

Main loop for parsing Properties from XML description.

This function queries the FactoryMessenger for elements to parse, and tries to matche each element to a Property to set it accordingly.

Any class that tries to be buildable from XML must supply a subcontractor (for base classes such as Metric, Astrobj, Spectrum and Spectrometer, it is done as a template that must be specialized for each class).

This subcontractor typically looks somewhat like this:

SmartPointer<Metric::Generic>
Gyoto::Metric::MyKind::Subcontractor(FactoryMessenger* fmp) {
SmartPointer<MyKind> gg = new MyKind();
gg -> setParameters(fmp);
return gg;
}
 Although this is discouraged, it is possible to override the
 following functions to customize how XML entities are parsed:
   - setParameters() if low-level access to the
     FactoryMessenger is required;
   - setParameter(std::string name,
                  std::string content,
                  std::string unit)
     to interpret an entity that does not match a Property
     (e.g. alternative name);
   - setParameter(Gyoto::Property const &p,
                  std::string const &name,
                  std::string const &content,
                  std::string const &unit)
     to change how a Property is interpreted.

Reimplemented in Gyoto::Astrobj::Generic, Gyoto::Photon, Gyoto::Astrobj::Star, Gyoto::Spectrometer::Complex, Gyoto::Spectrometer::Uniform, Gyoto::Astrobj::Complex, Gyoto::Astrobj::OscilTorus, Gyoto::Astrobj::EquatorialHotSpot, Gyoto::Metric::Complex, and Gyoto::Metric::Shift.

Member Data Documentation

◆ kind_

std::string Gyoto::Object::kind_
protectedinherited

The "kind" that is output in the XML entity.

E.g. for an Astrobj, fillElement() will ensure

<Astrobj kind="kind_" ...>...</Astrobj>

is written.

◆ plugins_

std::vector<std::string> Gyoto::Object::plugins_
protectedinherited

The plug-ins that needs to be loaded to access this instance's class.

E.g. for an Astrobj, fillElement() will ensure

<Astrobj ... plugin="plugins_">...</Astrobj>

is written.


The documentation for this class was generated from the following file:
