The camera with which the Astrobj is observed. More...

#include <GyotoScreen.h>

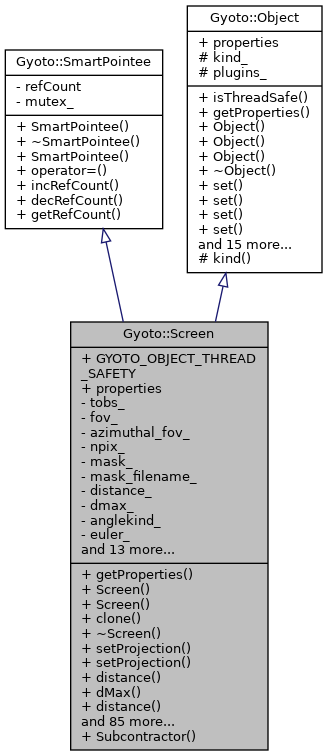

Inheritance diagram for Gyoto::Screen:

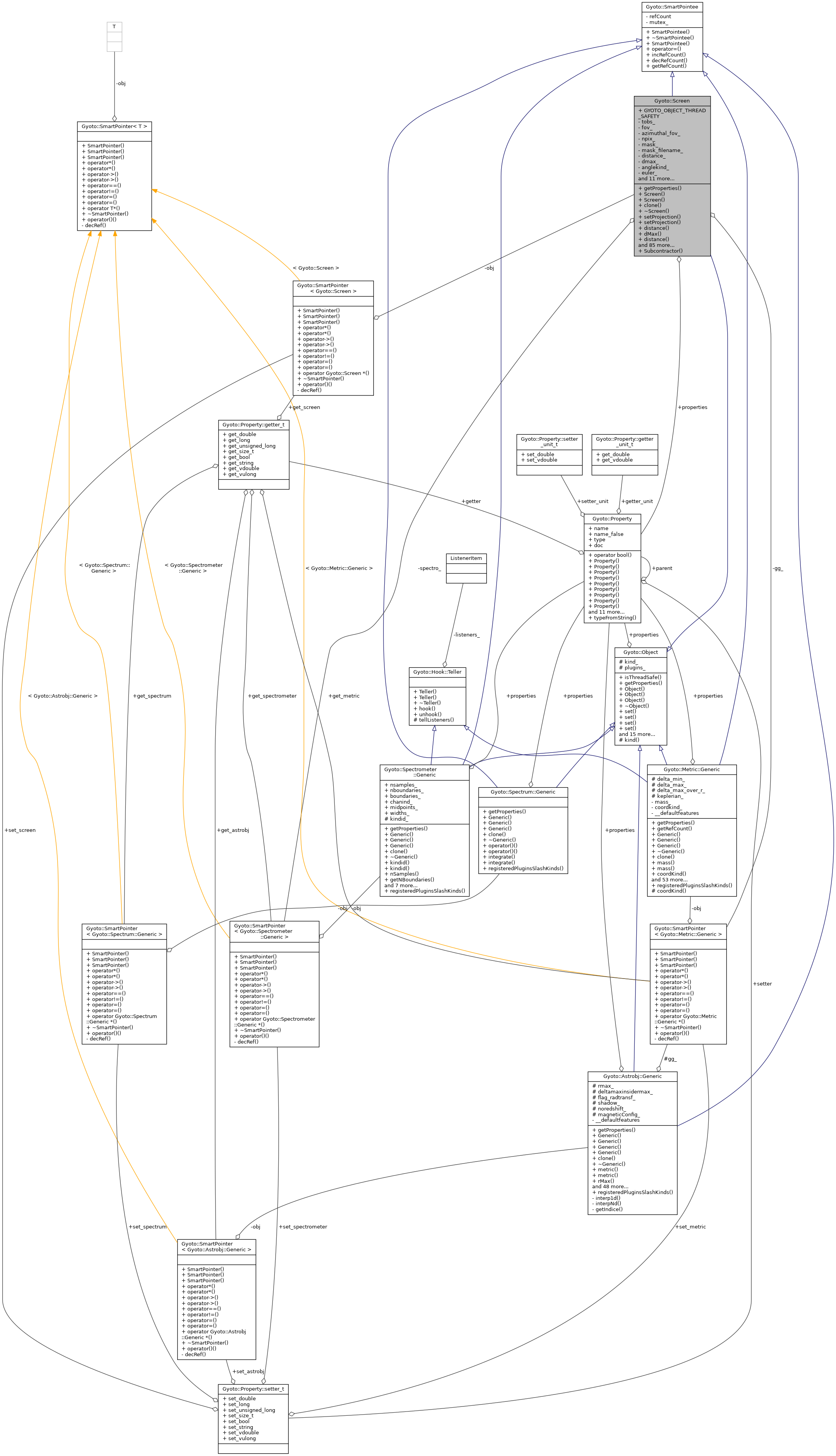

Classes
class	Angles
	1D specifier for an arbitrary angle coordinate set. More...

class	Bucket
	Class containing arbitrary 2D-points. More...

class	Coord1dSet
	Set of 1-d coordinates: indices or angles. More...

class	Coord2dSet
	Class to specify a set of points on the Screen. More...

class	Empty
	A dummy, empty 2D set. More...

class	Grid
	Class containing 2D-points organized in a grid. More...

class	Indices
	1D specifier for an arbitrary pixel coordinate set. More...

class	Range
	1D coordinated specifier for a range More...

class	RepeatAngle
	1D specifier for an angle that is repeated. More...

Public Types
enum	CoordType_e { angle, pixel }
	Enum to specify whether a coordinate set (Coord1dSet or Coord2dSet) holds pixel values or angles.

typedef Gyoto::SmartPointer< Gyoto::SmartPointee >	Subcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &)
	A subcontractor builds an object upon order from the Factory. More...

Public Member Functions
virtual Property const *	getProperties () const
	Get list of properties. More...

	Screen ()
	Default constructor.

	Screen (const Screen &)
	Copy constructor.

Screen *	clone () const
	Cloner.

virtual	~Screen ()
	Destructor.

void	setProjection (const double paln, const double inclination, const double argument)
	Set inclination etc.

void	setProjection (const double distance, const double paln, const double inclination, const double argument)
	Set distance, inclination etc.

void	distance (double dist)
	Set distance from observer. More...

void	dMax (double dist)
	Set ray-tracing maximum distance. More...

void	distance (double dist, const std::string &unit)
	Set distance from observer. More...

void	inclination (double)
	Set inclination relative to line-of-sight. More...

void	inclination (double, const std::string &unit)
	Set inclination relative to line-of-sight. More...

void	PALN (double)
	Set position angle of the line of nodes.

void	PALN (double, const std::string &unit)
	Set position angle of the line of nodes.

void	argument (double)
	Set angle beetwen line of nodes and X axis of object.

void	argument (double, const std::string &unit)
	Set angle beetwen line of nodes and X axis of object.

void	spectrometer (SmartPointer< Spectrometer::Generic > spectro)
	Set Screen::spectro_.

SmartPointer< Spectrometer::Generic >	spectrometer () const
	Get Screen::spectro_.

void	freqObs (double fo)
	Set freq_obs_. More...

void	freqObs (double fo, const std::string &unit)
	Set freq_obs_. More...

double	freqObs () const
	Get freq_obs_.

double	freqObs (const std::string &unit) const
	Get freq_obs_. More...

void	setObserverPos (const double pos[4])
	Alternative way to set projection. More...

void	observerKind (const std::string &kind)

std::string	observerKind () const

void	setFourVel (const double coord[4])
	Sets the observer's 4-velocity.

void	setScreen1 (const double coord[4])
	Sets the screen vector e1.

void	setScreen2 (const double coord[4])
	Sets the screen vector e2.

void	setScreen3 (const double coord[4])
	Sets the screen vector e3 (normal)

int	coordKind () const
	Get coordinate kind. More...

double	distance () const
	Get distance from observer. More...

double	distance (const std::string &) const
	Get distance from observer. More...

double	dMax () const
	Get maximum ray-tracing distance. More...

double	inclination () const
	Get inclination relative to line-of-sight. More...

double	inclination (const std::string &) const
	Get inclination relative to line-of-sight. More...

double	PALN () const
	Get position angle of the line of nodes.

double	PALN (const std::string &) const
	Get position angle of the line of nodes.

double	argument () const
	Get angle between line of nodes and X axis of object.

double	argument (const std::string &) const
	Get angle between line of nodes and X axis of object.

SmartPointer< Metric::Generic >	metric () const
	Get Screen::gg_.

void	metric (SmartPointer< Metric::Generic > gg)
	Set Screen::gg_.

double	time () const
	Get observing date in seconds.

double	time (const std::string &) const
	Get observing date in seconds.

void	time (double, const std::string &)
	Set observing date in specified unit.

void	time (double)
	Set observing date in seconds.

double	fieldOfView () const
	Get Screen::fov_ in radians.

double	fieldOfView (std::string const &unit) const
	Get Screen::fov_ in specified unit.

void	fieldOfView (double)
	Set Screen::fov_ in radians.

void	fieldOfView (double, const std::string &unit)
	Set Screen::fov_ in specified unit.

double	azimuthalFieldOfView () const
	Get Screen::azimuthal_fov_.

void	azimuthalFieldOfView (double ff)
	Set Screen::azimuthal_fov_.

void	dangle1 (double)
	Set increment to first position angle.

void	dangle1 (double, const std::string &unit)
	Set increment to first position angle in specified unit.

double	dangle1 () const
	Get increment to first position angle.

double	dangle1 (std::string const &unit) const
	Get increment to first position angle in specified unit.

void	dangle2 (double)
	Set increment to second position angle.

void	dangle2 (double, const std::string &unit)
	Set increment to second position angle in specified unit.

double	dangle2 () const
	Get increment to second position angle.

double	dangle2 (std::string const &unit) const
	Get increment to second position angle in specified unit.

void	anglekind (int)
	Set Screen::anglekind_.

void	anglekind (std::string const &)

std::string	anglekind () const

size_t	resolution () const
	Get Screen::npix_.

void	resolution (size_t)
	Set Screen::npix_.

void	mask (double const *const mm, size_t resolution=0)
	Set mask_ from array. More...

double const *	mask () const
	Retrieve const pointer to mask_.

void	maskFile (std::string const &fname)

std::string	maskFile () const

void	fitsReadMask (std::string const &fname)
	Read mask_ from FITS file.

void	fitsWriteMask (std::string const &fname)
	Save mask_ from FITS file.

bool	operator() (size_t, size_t)
	Whether this pixel should be ray-traced. More...

void	getObserverPos (double dest[4]) const
	4-Position of the observer relative to the metric More...

void	getFourVel (double dest[4]) const
	Get copy of Screen::fourvel_. More...

void	fourVel (std::vector< double > const &)

std::vector< double >	fourVel () const

void	screenVector1 (std::vector< double > const &)

std::vector< double >	screenVector1 () const

void	screenVector2 (std::vector< double > const &)

std::vector< double >	screenVector2 () const

void	screenVector3 (std::vector< double > const &)

std::vector< double >	screenVector3 () const

void	getScreen1 (double dest[4]) const
	Get copy of Screen::screen1_. More...

void	getScreen2 (double dest[4]) const
	Get copy of Screen::screen2_. More...

void	getScreen3 (double dest[4]) const
	Get copy of Screen::screen3_. More...

void	getRayCoord (double x, double y, double dest[8]) const
	Get 8-coordinate of Photon hitting screen from a given direction. More...

void	getRayTriad (double coord[8], double Ephi[4], double Etheta[4]) const
	Get polarization triad. More...

void	getRayCoord (const size_t i, const size_t j, double dest[8]) const
	Get 8-coordinate of Photon hitting screen pixel. More...

void	coordToSky (const double pos[4], double dest[3], bool geometrical=false) const
	Convert metric 4-position to sky 3-position. More...

void	skyToCoord (const double sky[3], double dest[4], bool geometrical=false) const
	Convert sky 3-position to metric 4-position. More...

void	coordToXYZ (const double pos[4], double dest[3]) const
	Convert 4-position to 3-cartesian coordinates.

void	computeBaseVectors ()
	Compute base vectors according to projection parameters.

std::ostream &	print (std::ostream &) const
	Display. More...

std::ostream &	printBaseVectors (std::ostream &) const
	Debug helper.

void	mapPixUnit ()
	Map "pix" and "pixel" to angular pixel width in unit system. More...

void	unmapPixUnit ()
	Unmap "pix" and "pixel" from unit system. More...

void	fillProperty (Gyoto::FactoryMessenger *fmp, Property const &p) const
	Output a single Property to XML. More...

void	incRefCount ()
	Increment the reference counter. Warning: Don't mess with the counter.

int	decRefCount ()
	Decrement the reference counter and return current value. Warning: Don't mess with the counter.

int	getRefCount ()
	Get the current number of references.

virtual bool	isThreadSafe () const
	Whether this class is thread-safe. More...

void	set (Property const &p, Value val)
	Set Value of a Property.

void	set (Property const &p, Value val, std::string const &unit)
	Set Value (expressed in unit) of a Property.

void	set (std::string const &pname, Value val)
	Set Value of a Property.

void	set (std::string const &pname, Value val, std::string const &unit)
	Set Value (expressed in unit) of a Property.

Value	get (Property const &p) const
	Get Value of a Property.

Value	get (std::string const &pname) const
	Get Value of a Property.

Value	get (Property const &p, std::string const &unit) const
	Get Value of a Property, converted to unit.

Value	get (std::string const &pname, std::string const &unit) const
	Get Value of a Property, converted to unit.

Property const *	property (std::string const pname) const
	Find property by name. More...

virtual void	fillElement (Gyoto::FactoryMessenger *fmp) const
	Fill the XML element for this Object. More...

virtual void	setParameters (Gyoto::FactoryMessenger *fmp)
	Main loop for parsing Properties from XML description. More...

virtual int	setParameter (std::string name, std::string content, std::string unit)
	Set parameter by name. More...

virtual void	setParameter (Gyoto::Property const &p, std::string const &name, std::string const &content, std::string const &unit)
	Set parameter by Property (and name) More...

std::string	describeProperty (Gyoto::Property const &p) const
	Format desrciption for a property. More...

void	help () const
	Print (to stdout) some help on this class. More...

Static Public Member Functions
static SmartPointer< Screen >	Subcontractor (FactoryMessenger *fmp)
	Instanciate a Screen from XML entity.

Public Attributes
	GYOTO_OBJECT_THREAD_SAFETY

Static Public Attributes
static GYOTO_OBJECT Property const	properties []

Protected Attributes
std::string	kind_
	The "kind" that is output in the XML entity. More...

std::vector< std::string >	plugins_
	The plug-ins that needs to be loaded to access this instance's class. More...

Private Types
enum	anglekind_e { equatorial_angles =0, rectilinear =1, spherical_angles =2 }

typedef int	anglekind_t

Private Attributes
double	tobs_
	Observing date in s.

double	fov_
	Field-of-view in rad.

double	azimuthal_fov_
	Azimuthal field-of-view for Spherical Angles images. Maximal extent of image in the azimuthal b-angle direction.

size_t	npix_
	Resolution in pixels.

double *	mask_
	Mask with 0 where the ray-tracing should not be performed.

std::string	mask_filename_
	Last read or written FITS file. More...

double	distance_
	Distance to the observer in m.

double	dmax_
	Maximum distance from which the photons are launched (geometrical units)

anglekind_t	anglekind_
	Screen angles kind (0: equatorial, 1: spherical)

double	euler_ [3]
	Euler angles. More...

double	ex_ [3]
	Sky coordinate of base X vector.

double	ey_ [3]
	Sky coordinate of base Y vector.

double	ez_ [3]
	Sky coordinate of base Z vector.

double	fourvel_ [4]
	Observer's 4-velocity.

double	screen1_ [4]
	Screen e1 vector.

double	screen2_ [4]
	Screen e2 vector.

double	screen3_ [4]
	Screen e3 vector (normal)

double	dangle1_
	Increment to first position angle of Screen; can be typically alpha if in Equatorial Angles, or a if in Spherical Angles.

double	dangle2_
	Increment to second position angle of Screen; can be typically delta if in Equatorial Angles, or b if in Spherical Angles.

SmartPointer< Metric::Generic >	gg_
	The Metric in this end of the Universe.

SmartPointer< Spectrometer::Generic >	spectro_
	Gyoto::Spectrometer::Generic subclass instance used for quantities Spectrum and BinSpectrum.

double	freq_obs_
	Frequency at which the observer observes. More...

obskind_t	observerkind_
	What kind of observer are we considering? (At infinity, ZAMO...)

Friends
class	Gyoto::SmartPointer< Gyoto::Screen >

Detailed Description

The camera with which the Astrobj is observed.

In the observer-centric point-of-view, the center of the Metric's coordinate system is positioned relatively to the observing Screen using three Euler angles and the distance (in meters). The three Euler angles are:

position angle of the line of nodes (North of East);
inclination (0 = face-on);
argument of the X axis of the Metric's coordinate system. We use the z-x-z convention. See http://en.wikipedia.org/wiki/Euler_angles

In addition, the Screen conveys:

the observing date (in geometrical units, but expect it to change to seconds in a future version);
the field-of-view of the image;
the resolution of the camera: number of pixels on each side (the camera is square);
the observing frequency.

The scalar FreqObs defines the observing frequency for Scenery quantity Intensity.

Likewise, a Gyoto::Spectrometer defines for which frequencies spectra are computed (when the Quantity Spectrum is requested in the Scenery).

For the sake of theoreticians, there is an alternate way of specifying the relative position of the Screen and Metric, by specifying the 4-coordinates of the Screen in the Metric's coordinate system (in that case, eerything is specified in geometrical units).

So an XML stanza for a Screen may look like that:

<Screen>
  <Time>       1000.      </Time>
  <FieldOfView>   0.3141592653589793 </FieldOfView>
  <Resolution>  128       </Resolution>
  <Distance>      1e30    </Distance>
  <PALN>          3.14159 </PALN>
  <Inclination>   2.0944  </Inclination>
  <Argument>     -2.0944  </Argument>
  <Spectrometer kind="freqlog" nsamples="10"> 17. 23. </Spectrometer>
  <FreqObs>       1e20    </FreqObs>
</Screen>

or like that:

<Screen>
  <Position> 1000. 1000. 0.15. 0.</Position>
  <FieldOfView>   0.3141592653589793 </FieldOfView>
  <Resolution>  128 </Resolution>
  <Spectrometer kind="freqlog" nsamples="10"> 17. 23. </Spectrometer>
  <FreqObs>       1e20    </FreqObs>
</Screen>

Units can be specified using the unit attribute in the XML file, for instance:

Possible units are (with [] noting the default):

distance: [m], geometrical, cm, km, AU, ly, pc, kpc, Mpc;
PALN, inclination, argument: [rad], deg.
frequency: [Hz], µm, GeV...

When the distance is really large and most of the ray-tracing would happen de facto in flat space, the camera is transported to a location at a reasonable distance from the metric and the images are scaled accordingly. The default value for this distance should be fine, but it can be customized using the "dmax" attribute of the "Distance" element. "dmax" is always expressed in geometrical units:

Symptoms when dmax is too large include pixelization of the image (neighbouring photons are numerically identical) and other numerical overflows. dmax is too small when it is apparent that changing it yields projection effects. dmax must be large compared to rmax in the Astrobj and ideally, changing it by an order of magnitude should not yield significant changes in the ray-traced image.

A mask may be used to limit ray-tracing to only some portions of the field. The Scenery checks whether a mask is to be used using Screen::operator()(size_t i, size_t j). The mask can be loaded from a FITS file as a square image of doubles:

<Mask>maskfile.fits</Mask>

The mask needs to be have the same size as the Screen itself, so loading a mask also sets the resolution, and changing the resolution after setting a mask also removes the mask. The content of the Mask entity is parsed by Factory::fullPath(), so it can be an absolute path, a path relative to where the XML file is stored, or relative to the current working directory if prefixed with "`pwd`/".

Member Typedef Documentation

◆ Subcontractor_t

typedef Gyoto::SmartPointer<Gyoto::SmartPointee> Gyoto::SmartPointee::Subcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &)

inherited

A subcontractor builds an object upon order from the Factory.

Various classes need to provide a subcontractor to be able to instantiate themselves upon order from the Factory. A subcontractor is a function (often a static member function) which accepts a pointer to a FactoryMessenger as unique parameter, communicates with the Factory using this messenger to read an XML description of the object to build, and returns this objet. SmartPointee::Subcontractor_t* is just generic enough a typedef to cast to and from other subcontractor types: Astrobj::Subcontractor_t, Metric::Subcontractor_t, Spectrum::Subcontractor_t. A subcontractor needs to be registered using the relevant Register() function: Astrobj::Register(), Metric::Register(), Spectrum::Register().

Member Function Documentation

◆ coordKind()

int Gyoto::Screen::coordKind ( ) const

Get coordinate kind.

From Screen::gg_.

◆ coordToSky()

void Gyoto::Screen::coordToSky	(	const double	pos[4],
		double	dest[3],
		bool	geometrical = `false`
	)		const

Convert metric 4-position to sky 3-position.

Parameters

[in]	pos	4-position in metric coordinates.
[in]	dest	3-position in plane of the sky: Cartesian East, North, front.
[in]	geometrical	if true, #dest will be in geometrical units instead of meters.

◆ describeProperty()

std::string Gyoto::Object::describeProperty ( Gyoto::Property const & p ) const

inherited

Format desrciption for a property.

Returns a string containing the name(s) and type of the property, as well as whether it supports unit.

◆ distance() [1/4]

void Gyoto::Screen::distance ( double dist )

Set distance from observer.

Parameters

dist	Distance in meters.

◆ distance() [2/4]

void Gyoto::Screen::distance	(	double	dist,
		const std::string &	unit
	)

Set distance from observer.

Parameters

dist	the distance expressed in the specified unit;
unit	convertible to meters

◆ distance() [3/4]

double Gyoto::Screen::distance ( ) const

Get distance from observer.

In meters.

◆ distance() [4/4]

double Gyoto::Screen::distance ( const std::string & ) const

Get distance from observer.

In specified unit.Get distance from observer

◆ dMax() [1/2]

void Gyoto::Screen::dMax ( double dist )

Set ray-tracing maximum distance.

Parameters

dist	Distance in geometrical units.

◆ dMax() [2/2]

double Gyoto::Screen::dMax ( ) const

Get maximum ray-tracing distance.

In geometrical units.

◆ fillElement()

virtual void Gyoto::Object::fillElement ( Gyoto::FactoryMessenger * fmp ) const

virtualinherited

Fill the XML element for this Object.

The base implementation simply calls fillProperty() for each Property defined for the Object.

Derived classes should avoid overriding fillElement(). It may make sense occasionally, e.g. to make sure that the metric is output first.

To customize how a given Property is rendered, it is better to override fillProperty().

If this method is overridden, the implementation should in general call fillElement() on the direct base.

Reimplemented in Gyoto::Scenery, Gyoto::Spectrometer::Complex, Gyoto::Astrobj::Complex, and Gyoto::Metric::Complex.

◆ fillProperty()

void Gyoto::Screen::fillProperty	(	Gyoto::FactoryMessenger *	fmp,
		Property const &	p
	)		const

virtual

Output a single Property to XML.

The base implementation decides what to do based on the p.type. The format matches how setParameters() an setParameter() would interpret the XML descition.

Overriding this method should be avoided, but makes sense in some cases (for instance Screen::fillProperty() selects a different unit for Distance based on its magnitude, so that stellar sizes are expressed in solar radii while smaller sizes can be expressed in meters and larger sizes in parsecs).

Overriding implementation should fall-back on calling the implementation in the direct parent class:

class A: public Object {};
class B: public A {
 using B::setParameter;
 virtual void fillProperty(Gyoto::FactoryMessenger *fmp,
                        Property const &p) const ;
};
void B::fillProperty(Gyoto::FactoryMessenger *fmp,
                        Property const &p) const {
  if (name=="Duff") fmp->doSomething();
  else A::fillProperty(fmp, p);
}

Reimplemented from Gyoto::Object.

◆ freqObs() [1/3]

void Gyoto::Screen::freqObs ( double fo )

Set freq_obs_.

Parameters

fo	double: observing frequency in Hz

◆ freqObs() [2/3]

void Gyoto::Screen::freqObs	(	double	fo,
		const std::string &	unit
	)

Set freq_obs_.

Parameters

fo	double: observing frequency (or wavelength) in "unit"
unit	string: unit in which fo is expressed, convertible to Herz or meters or energy.

◆ freqObs() [3/3]

double Gyoto::Screen::freqObs ( const std::string & unit ) const

Get freq_obs_.

Parameters

unit	string: unit in which freq_obs_ should be returned is expressed, convertible to Herz or meters or energy.

◆ getFourVel()

void Gyoto::Screen::getFourVel ( double dest[4] ) const

Get copy of Screen::fourvel_.

Parameters

[out] fourvel preallocated 4-element array

◆ getObserverPos()

void Gyoto::Screen::getObserverPos ( double dest[4] ) const

4-Position of the observer relative to the metric

A Screen is positioned relative to the observer with four elements: Screen::distance, Screen::inclination, Screen::paln and Screen::argument.

This function returns the position of the observer relative to the metric system in Screen::gg_, using these parameters. The output parameter is coord.

Parameters

[out] coord position of the observer. Must be preallocated.

◆ getProperties()

virtual Property const* Gyoto::Screen::getProperties ( ) const

virtual

Get list of properties.

This method is declared automatically by the GYOTO_OBJECT macro and defined automatically by the GYOTO_PROPERTY_END macro.

Reimplemented from Gyoto::Object.

◆ getRayCoord() [1/2]

void Gyoto::Screen::getRayCoord	(	double	x,
		double	y,
		double	dest[8]
	)		const

Get 8-coordinate of Photon hitting screen from a given direction.

Similar to Screen::getObserverPos() but will return in addition the 4-velocity of a photon corresponding to the sky direction given by x and y.

Parameters

[in]	x	RA (d_alpha*cos(delta)) offset in radians;
[in]	y	Dec offset (d_delta) in radians;
[out]	dest	position-velocity of the observer Photon. Preallocated.

◆ getRayCoord() [2/2]

void Gyoto::Screen::getRayCoord	(	const size_t	i,
		const size_t	j,
		double	dest[8]
	)		const

Get 8-coordinate of Photon hitting screen pixel.

Similar to Screen::getObserverPos() but will return in addition the 4-velocity of a photon corresponding to the sky direction given by x and y.

Parameters

[in]	i,j	pixel coordinates
[out]	dest	position-velocity of the Photon. Preallocated.

◆ getRayTriad()

void Gyoto::Screen::getRayTriad	(	double	coord[8],
		double	Ephi[4],
		double	Etheta[4]
	)		const

Get polarization triad.

Computes the polarization triad (Ephi,Etheta,k) from the tangent to photon geodesic k.

Parameters

[in]	coord	Photon coordinate + tangent vector (double[8])
[out]	Ephi	first polarisation direction. Preallocated. Default: NULL.
[out]	Etheta	second polarisation direction. Preallocated. Default: NULL.

◆ getScreen1()

void Gyoto::Screen::getScreen1 ( double dest[4] ) const

Get copy of Screen::screen1_.

Parameters

[out] dest preallocated 4-element array

◆ getScreen2()

void Gyoto::Screen::getScreen2 ( double dest[4] ) const

Get copy of Screen::screen2_.

Parameters

[out] dest preallocated 4-element array

◆ getScreen3()

void Gyoto::Screen::getScreen3 ( double dest[4] ) const

Get copy of Screen::screen3_.

Parameters

[out] dest preallocated 4-element array

◆ help()

void Gyoto::Object::help ( ) const

inherited

Print (to stdout) some help on this class.

Describe all properties that this instance supports.

◆ inclination() [1/4]

void Gyoto::Screen::inclination ( double )

Set inclination relative to line-of-sight.

Inclination of z-axis relative to line-of-sight, or inclination of equatorial plane relative to plane of the sky, in radians

◆ inclination() [2/4]

void Gyoto::Screen::inclination	(	double	,
		const std::string &	unit
	)

Set inclination relative to line-of-sight.

Inclination of z-axis relative to line-of-sight, or inclination of equatorial plane relative to plane of the sky, in specified unit.

◆ inclination() [3/4]

double Gyoto::Screen::inclination ( ) const

Get inclination relative to line-of-sight.

Inclination of z-axis relative to line-of-sight, or inclination of equatorial plane relative to plane of the sky, in radians.

◆ inclination() [4/4]

double Gyoto::Screen::inclination ( const std::string & ) const

Get inclination relative to line-of-sight.

Inclination of z-axis relative to line-of-sight, or inclination of equatorial plane relative to plane of the sky, in specified unit.

◆ isThreadSafe()

virtual bool Gyoto::Object::isThreadSafe ( ) const

virtualinherited

Whether this class is thread-safe.

Return True if this object is thread-safe, i.e. if an instance and its clone can be used in parallel threads (in the context of Scenery::raytrace()). Known objects which are not thread-safe include Lorene metrics and everything from the Python plug-in.

The default implementation considers that the class itself is thread safe and recurses into the declared properties to check whether they are safe too. Classes that abide to the Object/Property paradigm and are themselves thread-safe have nothing special to do.

Objects that clone children in their copy constructor that are not declared as properties must take these children into account.

Classes that are never thread-safe must declare it. It acn be easily done using GYOTO_OBJECT_THREAD_SAFETY in the class declaration and GYOTO_PROPERTY_THREAD_UNSAFE in the class definition.

◆ mapPixUnit()

void Gyoto::Screen::mapPixUnit ( )

Map "pix" and "pixel" to angular pixel width in unit system.

"pix" or "pixel" can then be used in units.

There is only one unit system in Gyoto: "pix" can therefore be registered only for one Screen at a time. See Gyoto::Units.

The unit must later be unmapped with unmapPixUnit().

◆ mask()

void Gyoto::Screen::mask	(	double const *const	mm,
		size_t	resolution = `0`
	)

Set mask_ from array.

mm will be copied. mm must be a square resolution x resolution array. If mm==NULL, just deallocate mask_.

◆ operator()()

bool Gyoto::Screen::operator()	(	size_t	,
		size_t
	)

Whether this pixel should be ray-traced.

If mask_ is not set, always true. Else, true for non-zero cells in mask_.

◆ print()

std::ostream& Gyoto::Screen::print ( std::ostream & ) const

Display.

Debug helper

◆ property()

Property const* Gyoto::Object::property ( std::string const pname ) const

inherited

Find property by name.

Look into the Property list for a Property whose name (or name_false, for a boolean Property) is pname. Return a const pointer to the first such property found, or NULL if none is found.

◆ setObserverPos()

void Gyoto::Screen::setObserverPos ( const double pos[4] )

Alternative way to set projection.

Beware : paln can not be set this way, setting later other parameters change the observer's coordinates. For observationnal ray-tracing purposes, prefer setProjection().

Parameters

[in] pos position of observer in Screen's coordinate system. Content is copied.

◆ setParameter() [1/2]

virtual int Gyoto::Object::setParameter	(	std::string	name,
		std::string	content,
		std::string	unit
	)

virtualinherited

Set parameter by name.

This function is used when parsing an XML description, if no Property of this name is found. Overriding implementation should fall-back on calling the direct's parent implementation:

class A: public Object {};
class B: public A {
 using B::setParameter;
 virtual int setParameter(std::string name,
                    std::string content,
                    std::string unit);
};
int B::setParameter(std::string name,
                    std::string content,
                    std::string unit) {
  if (name=="Duff") doSomething(content, unit);
  else return A::setParameter(name, content, unit);
  return 0;  // name was known
}

Parameters

name	XML name of the parameter (XML entity). This may have a path component, e.g. "Astrobj::Radius", in which case a property named "Astrobj" will be sought in the current object, and setParameter will be called recusrively on this Astrobj with Radius as name.
content	string representation of the value
unit	string representation of the unit

Returns: 0 if this parameter is known, 1 if it is not.

Reimplemented in Gyoto::Astrobj::Star, Gyoto::Metric::RotStar3_1, Gyoto::Metric::KerrKS, and Gyoto::Astrobj::EquatorialHotSpot.

◆ setParameter() [2/2]

virtual void Gyoto::Object::setParameter	(	Gyoto::Property const &	p,
		std::string const &	name,
		std::string const &	content,
		std::string const &	unit
	)

virtualinherited

Set parameter by Property (and name)

This function is used when parsing an XML description, if Property (p) of this name is found (i.e. either p.name or p.name_false is equal to name). Implementation should fall-back on calling the direct's parent implementation:

class A: public Object {};
class B: public A {
 using B::setParameter;
 virtual void setParameter(Gyoto::Property const &p,
                           std::string name,
                        std::string content,
                        std::string unit);
};
void B::setParameter(Gyoto::Property const &p,
                          std::string name,
                  std::string content,
                  std::string unit) {
  if (name=="Duff") doSomething(content, unit);
  else A::setParameter(p, name, content, unit);
}

Parameters

p	Property that matches name (p.name == name or p.name_false == name)
name	XML name of the parameter (XML entity)
content	string representation of the value
unit	string representation of the unit

Reimplemented in Gyoto::Astrobj::PolishDoughnut.

◆ setParameters()

virtual void Gyoto::Object::setParameters ( Gyoto::FactoryMessenger * fmp )

virtualinherited

Main loop for parsing Properties from XML description.

This function queries the FactoryMessenger for elements to parse, and tries to matche each element to a Property to set it accordingly.

Any class that tries to be buildable from XML must supply a subcontractor (for base classes such as Metric, Astrobj, Spectrum and Spectrometer, it is done as a template that must be specialized for each class).

This subcontractor typically looks somewhat like this:

SmartPointer<Metric::Generic>
Gyoto::Metric::MyKind::Subcontractor(FactoryMessenger* fmp) {
  SmartPointer<MyKind> gg = new MyKind();
  gg -> setParameters(fmp);
  return gg;
}

 Although this is discouraged, it is possible to override the
 following functions to customize how XML entities are parsed:
   - setParameters() if low-level access to the
     FactoryMessenger is required;
   - setParameter(std::string name,
                  std::string content,
                  std::string unit)
     to interpret an entity that does not match a Property
     (e.g. alternative name);
   - setParameter(Gyoto::Property const &p,
                  std::string const &name,
                  std::string const &content,
                  std::string const &unit)
     to change how a Property is interpreted.

Reimplemented in Gyoto::Astrobj::Generic, Gyoto::Photon, Gyoto::Astrobj::Star, Gyoto::Spectrometer::Complex, Gyoto::Spectrometer::Uniform, Gyoto::Astrobj::Complex, Gyoto::Astrobj::OscilTorus, Gyoto::Astrobj::EquatorialHotSpot, Gyoto::Metric::Complex, and Gyoto::Metric::Shift.

◆ skyToCoord()

void Gyoto::Screen::skyToCoord	(	const double	sky[3],
		double	dest[4],
		bool	geometrical = `false`
	)		const

Convert sky 3-position to metric 4-position.

Parameters

[in]	sky	3-position in plane of the sky.
[in]	dest	4-position in metric coordinates (dest[0] is not modified).
[in]	geometrical	set to true if #sky is in geometrical units instead of meters.

◆ unmapPixUnit()

void Gyoto::Screen::unmapPixUnit ( )

Unmap "pix" and "pixel" from unit system.

Member Data Documentation

◆ euler_

double Gyoto::Screen::euler_[3]

private

Euler angles.

The angles are position angle of the line of nodes (North of East), inclination (0 = face-on), argument of X axis. We use the z-x-z convention. See http://en.wikipedia.org/wiki/Euler_angles

◆ freq_obs_

double Gyoto::Screen::freq_obs_

private

Frequency at which the observer observes.

For the quantity Intensity

◆ kind_

std::string Gyoto::Object::kind_

protectedinherited

The "kind" that is output in the XML entity.

E.g. for an Astrobj, fillElement() will ensure

is written.

◆ mask_filename_

std::string Gyoto::Screen::mask_filename_

private

Last read or written FITS file.

Used when saving to XML: if the mask was saved or loaded from FITS file, output this file name in the XML.

◆ plugins_

std::vector<std::string> Gyoto::Object::plugins_

protectedinherited

The plug-ins that needs to be loaded to access this instance's class.

E.g. for an Astrobj, fillElement() will ensure

is written.

The documentation for this class was generated from the following file:

GyotoScreen.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Attributes

Private Types

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Subcontractor_t

Member Function Documentation

◆ coordKind()

◆ coordToSky()

◆ describeProperty()

◆ distance() [1/4]

◆ distance() [2/4]

◆ distance() [3/4]

◆ distance() [4/4]

◆ dMax() [1/2]

◆ dMax() [2/2]

◆ fillElement()

◆ fillProperty()

◆ freqObs() [1/3]

◆ freqObs() [2/3]

◆ freqObs() [3/3]

◆ getFourVel()

◆ getObserverPos()

◆ getProperties()

◆ getRayCoord() [1/2]

◆ getRayCoord() [2/2]

◆ getRayTriad()

◆ getScreen1()

◆ getScreen2()

◆ getScreen3()

◆ help()

◆ inclination() [1/4]

◆ inclination() [2/4]

◆ inclination() [3/4]

◆ inclination() [4/4]

◆ isThreadSafe()

◆ mapPixUnit()

◆ mask()

◆ operator()()

◆ print()

◆ property()

◆ setObserverPos()

◆ setParameter() [1/2]

◆ setParameter() [2/2]

◆ setParameters()

◆ skyToCoord()

◆ unmapPixUnit()

Member Data Documentation

◆ euler_

◆ freq_obs_

◆ kind_

◆ mask_filename_

◆ plugins_
