Geometrically thin disk in Kerr metric. More...

#include <GyotoPageThorneDisk.h>

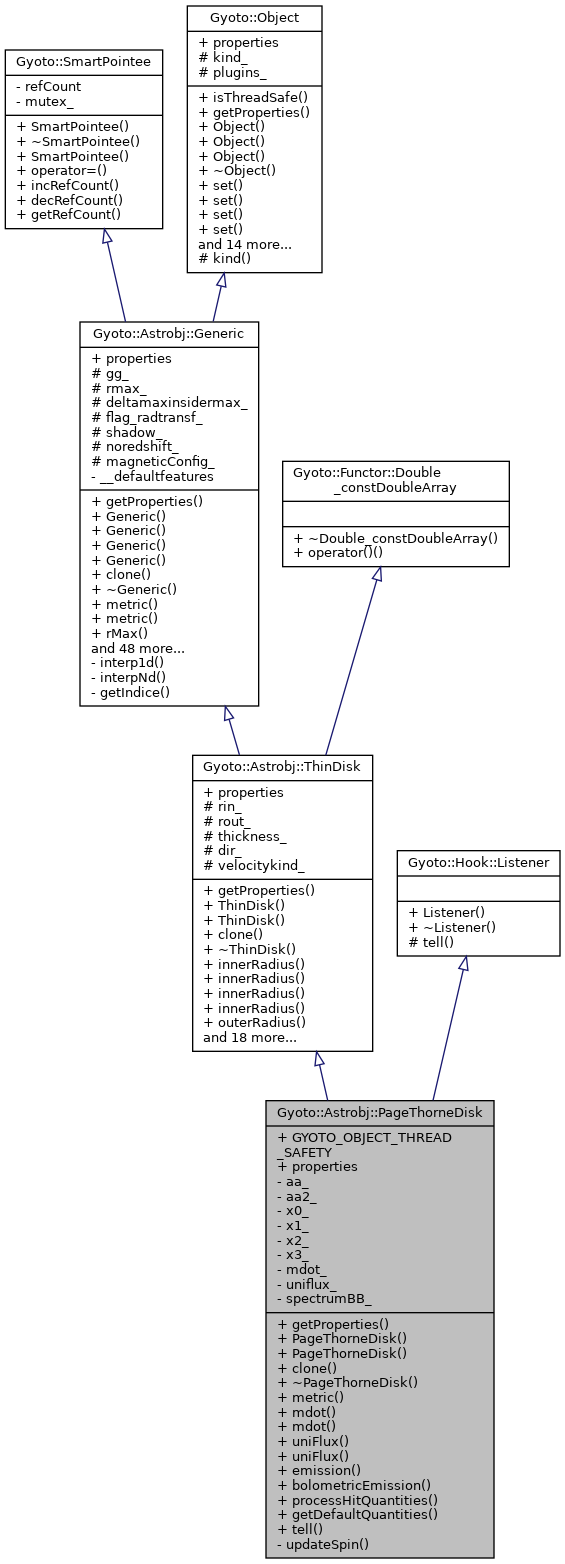

Inheritance diagram for Gyoto::Astrobj::PageThorneDisk:

Public Types
typedef Gyoto::SmartPointer< Gyoto::SmartPointee >	Subcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &)
	A subcontractor builds an object upon order from the Factory. More...

Public Member Functions
virtual Property const *	getProperties () const
	Get list of properties. More...

	PageThorneDisk ()
	Standard constructor.

	PageThorneDisk (const PageThorneDisk &)
	Copy constructor.

virtual PageThorneDisk *	clone () const
	Cloner.

virtual	~PageThorneDisk ()
	Destructor.

virtual void	metric (SmartPointer< Metric::Generic >)
	Set metric, checking that it is either KerrBL or KerrKS.

void	mdot (double v)
	Set mdot_ to v.

double	mdot () const

void	uniFlux (bool t)

bool	uniFlux () const

virtual double	emission (double nu_em, double dsem, state_t const &c_ph, double const c_obj[8]=NULL) const
	Not implemented Throws a Gyoto::Error.

virtual double	bolometricEmission (double nuem, double dsem, double const c_obj[8]) const
	Bolometric emission. More...

virtual void	processHitQuantities (Photon ph, state_t const &coord_ph_hit, double const coord_obj_hit, double dt, Astrobj::Properties *data) const
	processHitQuantities fills the requested data in Impact. For PageThorneDisk, only fill User4, which corresponds to bolometric intensity.

Gyoto::Quantity_t	getDefaultQuantities ()
	Which quantities to compute if know was requested. More...

virtual void	tell (Gyoto::Hook::Teller *msg)
	Update PageThorneDisk::aa_. More...

virtual double	innerRadius () const
	Get rin_.

virtual double	innerRadius (std::string const &) const
	Get rin_.

virtual void	innerRadius (double)
	Set rin_.

virtual void	innerRadius (double, std::string const &)
	Set rin_.

virtual double	outerRadius () const
	Get rout_.

virtual double	outerRadius (std::string const &) const
	Get rout_.

virtual void	outerRadius (double)
	Set rout_.

virtual void	outerRadius (double, std::string const &)
	Set rout_.

virtual double	thickness () const
	Get thickness_.

virtual double	thickness (std::string const &) const
	Get thickness_.

virtual void	thickness (double)
	Set thickness_.

virtual void	thickness (double, std::string const &)
	Set thickness_.

virtual int	dir () const
	Get dir_.

virtual void	dir (int)
	Set dir_.

virtual bool	corotating () const

virtual void	corotating (bool t)
	Get dir_==1.

virtual std::string	velocityKind () const
	Set dir_=t?1:-1. More...

virtual void	velocityKind (std::string const &)
	Set VelocityKind.

virtual double	operator() (double const coord[])
	theta-pi/2 or z More...

virtual double	projectedRadius (double const coord[]) const
	Projected radius of position coord on the equatorial plane.

virtual double	sphericalPhi (double const coord[]) const
	Longitude.

virtual void	getVelocity (double const pos[4], double vel[4])
	Get fluid 4-velocity at point. More...

virtual int	Impact (Gyoto::Photon ph, size_t index, Astrobj::Properties data=NULL)
	Does a photon at these coordinates impact the object? More...

virtual SmartPointer< Metric::Generic >	metric () const
	Get the Metric gg_.

virtual double	rMax ()
	Get maximal distance from center of coordinate system. More...

virtual double	rMax () const
	Get maximal distance from center of coordinate system.

virtual double	rMax (std::string const &unit)
	Get rmax_ is specified unit. More...

virtual double	rMax (std::string const &unit) const
	Get rmax_ is specified unit.

virtual void	rMax (double val)
	Set maximal distance from center of coordinate system. More...

virtual void	rMax (double val, std::string const &unit)
	Set maximal distance from center of coordinate system. More...

virtual double	deltaMax (double coord[8])
	Get max step constraint for adaptive integration. More...

const std::string	kind () const
	Get the kind of the Astrobj (e.g. "Star")

	GYOTO_OBJECT_ACCESSORS_UNIT (deltaMaxInsideRMax)

void	opticallyThin (bool flag)
	Set whether the object is optically thin. More...

bool	opticallyThin () const
	Query whether object is optically thin. More...

void	showshadow (bool flag)

bool	showshadow () const

void	redshift (bool flag)

bool	redshift () const

virtual void	setParameters (FactoryMessenger *fmp)
	Main loop in Subcontractor_t function. More...

virtual void	processHitQuantities (Photon ph, double coord_ph_hit, double coord_obj_hit, double dt, Astrobj::Properties data) const =delete

virtual double	emission (double nu_em, double dsem, double coord_ph[8], double coord_obj[8]=NULL) const =delete
	Obsolete, update your code;.

virtual void	emission (double Inu[], double const nu_em[], size_t nbnu, double dsem, state_t const &coord_ph, double const coord_obj[8]=NULL) const
	Specific intensity I_ν for several values of ν_em More...

virtual void	emission (double Inu[], double nu_em[], size_t nbnu, double dsem, double coord_ph[8], double coord_obj[8]=NULL) const =delete
	Obsolete, update your code.

virtual void	radiativeQ (double Inu[], double Taunu[], double const nu_em[], size_t nbnu, double dsem, state_t const &coord_ph, double const coord_obj[8]=NULL) const
	emission and transmission together

virtual void	radiativeQ (double Inu[], double Taunu[], double nu_em[], size_t nbnu, double dsem, double coord_ph[8], double coord_obj[8]=NULL) const =delete

virtual void	radiativeQ (double Inu, double Qnu, double Unu, double Vnu, double alphaInu, double alphaQnu, double alphaUnu, double alphaVnu, double rQnu, double rUnu, double rVnu, double const nuem, size_t nbnu, double dsem, state_t const &cph, double const *co) const

virtual double	integrateEmission (double nu1, double nu2, double dsem, state_t const &c_ph, double const c_obj[8]=NULL) const
	∫_ν₁^ν₂ I_ν dν (or j_ν) More...

virtual double	integrateEmission (double nu1, double nu2, double dsem, double c_ph[8], double c_obj[8]=NULL) const =delete
	Obsolete, update your code.

virtual void	integrateEmission (double I, double const boundaries, size_t const chaninds, size_t nbnu, double dsem, state_t const &cph, double const co) const
	∫_ν₁^ν₂ I_ν dν (or j_ν) More...

virtual void	integrateEmission (double I, double const boundaries, size_t const chaninds, size_t nbnu, double dsem, double cph, double *co) const =delete
	Obsolete, update your code.

virtual double	transmission (double nuem, double dsem, state_t const &coord_ph, double const coord_obj[8]) const
	Transmission: exp( α_ν * ds_em ) More...

virtual double	transmission (double nuem, double dsem, state_t const &coord) const =delete
	Obsolete, update your code.

virtual double	transmission (double nuem, double dsem, double coord[8]) const =delete
	Obsolete, update your code.

void	incRefCount ()
	Increment the reference counter. Warning: Don't mess with the counter.

int	decRefCount ()
	Decrement the reference counter and return current value. Warning: Don't mess with the counter.

int	getRefCount ()
	Get the current number of references.

virtual bool	isThreadSafe () const
	Whether this class is thread-safe. More...

void	set (Property const &p, Value val)
	Set Value of a Property.

void	set (Property const &p, Value val, std::string const &unit)
	Set Value (expressed in unit) of a Property.

void	set (std::string const &pname, Value val)
	Set Value of a Property.

void	set (std::string const &pname, Value val, std::string const &unit)
	Set Value (expressed in unit) of a Property.

Value	get (Property const &p) const
	Get Value of a Property.

Value	get (std::string const &pname) const
	Get Value of a Property.

Value	get (Property const &p, std::string const &unit) const
	Get Value of a Property, converted to unit.

Value	get (std::string const &pname, std::string const &unit) const
	Get Value of a Property, converted to unit.

Property const *	property (std::string const pname) const
	Find property by name. More...

virtual void	fillProperty (Gyoto::FactoryMessenger *fmp, Property const &p) const
	Output a single Property to XML. More...

virtual void	fillElement (Gyoto::FactoryMessenger *fmp) const
	Fill the XML element for this Object. More...

virtual int	setParameter (std::string name, std::string content, std::string unit)
	Set parameter by name. More...

virtual void	setParameter (Gyoto::Property const &p, std::string const &name, std::string const &content, std::string const &unit)
	Set parameter by Property (and name) More...

std::string	describeProperty (Gyoto::Property const &p) const
	Format desrciption for a property. More...

void	help () const
	Print (to stdout) some help on this class. More...

Public Attributes
	GYOTO_OBJECT_THREAD_SAFETY

Static Public Attributes
static GYOTO_OBJECT Property const	properties []

Protected Attributes
double	rin_
	disk inner radius in geometrical units

double	rout_
	disk outer radius in geometrical units

double	thickness_
	disk thickness More...

int	dir_
	1 for corotating (default), -1 for counterrotating.

unsigned int	velocitykind_
	tag for VelocityKind

SmartPointer< Gyoto::Metric::Generic >	gg_
	The Metric in this end of the Universe.

double	rmax_
	Maximum distance to the center of the coordinate system [geometrical units]. More...

double	deltamaxinsidermax_
	Maximum Photon integration step inside rmax_ [geometrical units]. More...

bool	flag_radtransf_
	1 if radiative transfer inside Astrobj, else 0

int	shadow_
	1 to highlight the shadow region in the image

int	noredshift_
	1 to impose redshift factor g = 1

std::string	kind_
	The "kind" that is output in the XML entity. More...

std::vector< std::string >	plugins_
	The plug-ins that needs to be loaded to access this instance's class. More...

Private Member Functions
virtual void	updateSpin ()
	Get spin from metric, which must be KerrBL or KerrKS.

Private Attributes
double	aa_
	Generic::gg_ spin parameter, monitored by tell()

double	aa2_
	aa_²

double	x0_
	Value cached for bolometricEmission()

double	x1_
	Value cached for bolometricEmission()

double	x2_
	Value cached for bolometricEmission()

double	x3_
	Value cached for bolometricEmission()

double	mdot_
	accretion rate (for BB spectrum computation)

bool	uniflux_
	Flag for uniform flux = 1.

SmartPointer< Spectrum::BlackBody >	spectrumBB_
	emission law More...

Friends
class	Gyoto::SmartPointer< Gyoto::Astrobj::PageThorneDisk >

Detailed Description

Geometrically thin disk in Kerr metric.

This class describes a disk contained in the z=0 (equatorial) plane, extending from r=r_ISCO to r=infinity. The flux emitted at radius r is given by Page & Thorne (1974, ApJ 191:499, Eqs. 11b, 14, 15).

The metric must be either KerrBL or KerrKS. Emission, Spectrum and BinSpectrum are not provide, the only intensity provided is provided, as quantity User4 and it is the default quantity returned if nothing is requested. The other quantities implemented in ThinDisk are also provided.

Member Typedef Documentation

◆ Subcontractor_t

typedef Gyoto::SmartPointer<Gyoto::SmartPointee> Gyoto::SmartPointee::Subcontractor_t(Gyoto::FactoryMessenger *, std::vector< std::string > const &)

inherited

A subcontractor builds an object upon order from the Factory.

Various classes need to provide a subcontractor to be able to instantiate themselves upon order from the Factory. A subcontractor is a function (often a static member function) which accepts a pointer to a FactoryMessenger as unique parameter, communicates with the Factory using this messenger to read an XML description of the object to build, and returns this objet. SmartPointee::Subcontractor_t* is just generic enough a typedef to cast to and from other subcontractor types: Astrobj::Subcontractor_t, Metric::Subcontractor_t, Spectrum::Subcontractor_t. A subcontractor needs to be registered using the relevant Register() function: Astrobj::Register(), Metric::Register(), Spectrum::Register().

Member Function Documentation

◆ bolometricEmission()

virtual double Gyoto::Astrobj::PageThorneDisk::bolometricEmission	(	double	nuem,
		double	dsem,
		double const	c_obj[8]
	)		const

virtual

Bolometric emission.

Similar to Generic::emission(), but bolometric.

◆ deltaMax()

virtual double Gyoto::Astrobj::Generic::deltaMax ( double coord[8] )

virtualinherited

Get max step constraint for adaptive integration.

Parameters

[in] coord position

Returns: max step to find this object reliably

Reimplemented in Gyoto::Astrobj::Complex.

◆ describeProperty()

std::string Gyoto::Object::describeProperty ( Gyoto::Property const & p ) const

inherited

Format desrciption for a property.

Returns a string containing the name(s) and type of the property, as well as whether it supports unit.

◆ emission()

virtual void Gyoto::Astrobj::Generic::emission	(	double	Inu[],
		double const	nu_em[],
		size_t	nbnu,
		double	dsem,
		state_t const &	coord_ph,
		double const	coord_obj[8] = `NULL`
	)		const

virtualinherited

Specific intensity I_ν for several values of ν_em

Called by the default implementation for processHitQuantities().

emission() computes the intensity I_ν emitted by the small volume of length dsem. It should take self-absorption along dsem into account.

Same as emission(double nu_em, double dsem, double coord_ph[8], double coord_obj[8]=NULL) const looping on several values of nu_em.

Parameters

Inu[nbnu]	Output (must be set to a previously allocated array of doubles)
nu_em[nbnu]	Frequencies at emission
nbnu	Size of Inu[] and nu_em[]
dsem	Length over which to integrate inside the object
coord_ph	Photon coordinate
coord_obj	Emitter coordinate at current photon position

Returns: I_ν or dI_ν [W m-2 sr-2]

Reimplemented in Gyoto::Astrobj::Python::ThinDisk, and Gyoto::Astrobj::Python::Standard.

◆ fillElement()

virtual void Gyoto::Object::fillElement ( Gyoto::FactoryMessenger * fmp ) const

virtualinherited

Fill the XML element for this Object.

The base implementation simply calls fillProperty() for each Property defined for the Object.

Derived classes should avoid overriding fillElement(). It may make sense occasionally, e.g. to make sure that the metric is output first.

To customize how a given Property is rendered, it is better to override fillProperty().

If this method is overridden, the implementation should in general call fillElement() on the direct base.

Reimplemented in Gyoto::Scenery, Gyoto::Spectrometer::Complex, Gyoto::Astrobj::Complex, and Gyoto::Metric::Complex.

◆ fillProperty()

virtual void Gyoto::Object::fillProperty	(	Gyoto::FactoryMessenger *	fmp,
		Property const &	p
	)		const

virtualinherited

Output a single Property to XML.

The base implementation decides what to do based on the p.type. The format matches how setParameters() an setParameter() would interpret the XML descition.

Overriding this method should be avoided, but makes sense in some cases (for instance Screen::fillProperty() selects a different unit for Distance based on its magnitude, so that stellar sizes are expressed in solar radii while smaller sizes can be expressed in meters and larger sizes in parsecs).

Overriding implementation should fall-back on calling the implementation in the direct parent class:

class A: public Object {};
class B: public A {
 using B::setParameter;
 virtual void fillProperty(Gyoto::FactoryMessenger *fmp,
                        Property const &p) const ;
};
void B::fillProperty(Gyoto::FactoryMessenger *fmp,
                        Property const &p) const {
  if (name=="Duff") fmp->doSomething();
  else A::fillProperty(fmp, p);
}

Reimplemented in Gyoto::Screen, Gyoto::Scenery, Gyoto::Astrobj::Star, Gyoto::Spectrometer::Uniform, Gyoto::Astrobj::PolishDoughnut, Gyoto::Astrobj::Disk3D, Gyoto::Astrobj::PatternDisk, Gyoto::Astrobj::DirectionalDisk, Gyoto::Astrobj::DynamicalDisk, Gyoto::Astrobj::EquatorialHotSpot, Gyoto::Astrobj::XillverReflection, Gyoto::Metric::Shift, and Gyoto::Astrobj::NeutronStarModelAtmosphere.

◆ getDefaultQuantities()

Gyoto::Quantity_t Gyoto::Astrobj::PageThorneDisk::getDefaultQuantities ( )

virtual

Which quantities to compute if know was requested.

Return a Gyoto::Quantity_t suitable as input to Gyoto::Scenery::setRequestedQuantities() to set de default quantities to compute for this object. The default of these defaults GYOTO_QUANTITY_INTENSITY.

Reimplemented from Gyoto::Astrobj::Generic.

◆ getProperties()

virtual Property const* Gyoto::Astrobj::PageThorneDisk::getProperties ( ) const

virtual

Get list of properties.

This method is declared automatically by the GYOTO_OBJECT macro and defined automatically by the GYOTO_PROPERTY_END macro.

Reimplemented from Gyoto::Astrobj::ThinDisk.

◆ getVelocity()

virtual void Gyoto::Astrobj::ThinDisk::getVelocity	(	double const	pos[4],
		double	vel[4]
	)

virtualinherited

Get fluid 4-velocity at point.

Fill vel with the 4-vector velocity of the fluid at 4-position pos. getVelocity() should work at some distance from the equatorial plane. The default implementation calls Metric::Generic::circularVelocity().

Parameters

[in]	pos	4-position at which to compute velocity;
[out]	vel	4-velocity at pos.

Reimplemented in Gyoto::Astrobj::Python::ThinDisk, Gyoto::Astrobj::PatternDisk, Gyoto::Astrobj::ThinDiskGridIntensity, Gyoto::Astrobj::DynamicalDisk, Gyoto::Astrobj::ThinDiskProfile, Gyoto::Astrobj::EquatorialHotSpot, and Gyoto::Astrobj::ThinDiskIronLine.

◆ help()

void Gyoto::Object::help ( ) const

inherited

Print (to stdout) some help on this class.

Describe all properties that this instance supports.

◆ Impact()

virtual int Gyoto::Astrobj::ThinDisk::Impact	(	Gyoto::Photon *	ph,
		size_t	index,
		Astrobj::Properties *	data = `NULL`
	)

virtualinherited

Does a photon at these coordinates impact the object?

Impact() checks whether a Photon impacts the object between two integration steps of the photon's trajectory (those two steps are photon->getCoord(index, coord1) and photon->getCoord(index+1, coord2)). Impact returns 1 if the photon impacts the object between these two steps, else 0. In many cases of geometrically thick obects, the implementation Astrobj::Standard::Impact() will be fine.

Impact will call Generic::processHitQuantities() (which is virtual and may be re-implemented) to compute observable properties on demand: if the data pointer is non-NULL, the object will look in it for pointers to properties which apply to its kind. If a pointer to a property known to this object is present, then the property is computed and store at the pointed-to address. For instance, all objects know the "intensity" property. If data->intensity != NULL, the instensity is computed and stored in *data->intensity.

If data is non-NULL and only in this case, processHitQuantities() will also call ph->transmit() to update the transmissions of the Photon (see Photon::transmit(size_t, double)). This must not be done if data is NULL (see Astrobj::Complex::Impact() for an explanation).

Impact() may not extend the ph Worldline. The only two dates that are guaranteed to be defined are at indices index and index+1.

Parameters

ph	Gyoto::Photon aimed at the object;
index	Index of the last photon step;
data	Pointer to a structure to hold the observables at impact.

Returns: 1 if impact, 0 if not.

Implements Gyoto::Astrobj::Generic.

◆ integrateEmission() [1/2]

virtual double Gyoto::Astrobj::Generic::integrateEmission	(	double	nu1,
		double	nu2,
		double	dsem,
		state_t const &	c_ph,
		double const	c_obj[8] = `NULL`
	)		const

virtualinherited

∫_ν₁^ν₂ I_ν dν (or j_ν)

Compute the integral of emission() from ν₁ to ν₂. The default implementation is a numerical integrator which works well enough and is reasonably fast if emission() is a smooth function (i.e. no emission or absorption lines). If possible, it is wise to implement an analytical solution. It is used by processHitQuantities to compute the "BinSpectrum" quantity which is the most physical: it is the only quantity that can be actually measured directly by a real-life instrument.

Reimplemented in Gyoto::Astrobj::Python::ThinDisk, Gyoto::Astrobj::Python::Standard, and Gyoto::Astrobj::Torus.

◆ integrateEmission() [2/2]

virtual void Gyoto::Astrobj::Generic::integrateEmission	(	double *	I,
		double const *	boundaries,
		size_t const *	chaninds,
		size_t	nbnu,
		double	dsem,
		state_t const &	cph,
		double const *	co
	)		const

virtualinherited

∫_ν₁^ν₂ I_ν dν (or j_ν)

Like double integrateEmission(double nu1, double nu2, double dsem, double c_ph[8], double c_obj[8]) const for each Spectrometer channel.

Reimplemented in Gyoto::Astrobj::Python::ThinDisk, Gyoto::Astrobj::Python::Standard, and Gyoto::Astrobj::PolishDoughnut.

◆ isThreadSafe()

virtual bool Gyoto::Object::isThreadSafe ( ) const

virtualinherited

Whether this class is thread-safe.

Return True if this object is thread-safe, i.e. if an instance and its clone can be used in parallel threads (in the context of Scenery::raytrace()). Known objects which are not thread-safe include Lorene metrics and everything from the Python plug-in.

The default implementation considers that the class itself is thread safe and recurses into the declared properties to check whether they are safe too. Classes that abide to the Object/Property paradigm and are themselves thread-safe have nothing special to do.

Objects that clone children in their copy constructor that are not declared as properties must take these children into account.

Classes that are never thread-safe must declare it. It acn be easily done using GYOTO_OBJECT_THREAD_SAFETY in the class declaration and GYOTO_PROPERTY_THREAD_UNSAFE in the class definition.

◆ operator()()

virtual double Gyoto::Astrobj::ThinDisk::operator() ( double const coord[] )

virtualinherited

theta-pi/2 or z

A function which changes sign on the equatorial plane.

Implements Gyoto::Functor::Double_constDoubleArray.

◆ opticallyThin() [1/2]

void Gyoto::Astrobj::Generic::opticallyThin ( bool flag )

inherited

Set whether the object is optically thin.

Set flag indicating that radiative transfer should be integrated, i.e. the object is to be considered optically thin.

Parameters

flag	1 if optically thin, 0 if optically thick.

◆ opticallyThin() [2/2]

bool Gyoto::Astrobj::Generic::opticallyThin ( ) const

inherited

Query whether object is optically thin.

See opticallyThin(bool flag).

◆ property()

Property const* Gyoto::Object::property ( std::string const pname ) const

inherited

Find property by name.

Look into the Property list for a Property whose name (or name_false, for a boolean Property) is pname. Return a const pointer to the first such property found, or NULL if none is found.

◆ rMax() [1/4]

virtual double Gyoto::Astrobj::Generic::rMax ( )

virtualinherited

Get maximal distance from center of coordinate system.

Get maximal distance from center of coordinate system at which a Photon may hit the object.

Child classes may use the rmax_ member to cache this value, if its current value is DBL_MAX.

It can also be set using rMax().

Returns: rmax_ in geometrical units

Reimplemented in Gyoto::Astrobj::Star, Gyoto::Astrobj::Torus, Gyoto::Astrobj::Complex, and Gyoto::Astrobj::FixedStar.

◆ rMax() [2/4]

virtual double Gyoto::Astrobj::Generic::rMax ( std::string const & unit )

virtualinherited

Get rmax_ is specified unit.

Call rMax() and convert result to unit.

Parameters

unit string

Returns: double rmax converted to unit

◆ rMax() [3/4]

virtual void Gyoto::Astrobj::Generic::rMax ( double val )

virtualinherited

Set maximal distance from center of coordinate system.

Set maximal distance from center of coordinate system at which a Photon may hit the object.

Parameters

val	new rmax_ in geometrical units.

◆ rMax() [4/4]

virtual void Gyoto::Astrobj::Generic::rMax	(	double	val,
		std::string const &	unit
	)

virtualinherited

Set maximal distance from center of coordinate system.

Call Generic::rMax(double val) after converting val from unit to geometrical units.

Parameters

val	rmax_ expressed in unit "unit";
unit	string...

◆ setParameter() [1/2]

virtual int Gyoto::Object::setParameter	(	std::string	name,
		std::string	content,
		std::string	unit
	)

virtualinherited

Set parameter by name.

This function is used when parsing an XML description, if no Property of this name is found. Overriding implementation should fall-back on calling the direct's parent implementation:

class A: public Object {};
class B: public A {
 using B::setParameter;
 virtual int setParameter(std::string name,
                    std::string content,
                    std::string unit);
};
int B::setParameter(std::string name,
                    std::string content,
                    std::string unit) {
  if (name=="Duff") doSomething(content, unit);
  else return A::setParameter(name, content, unit);
  return 0;  // name was known
}

Parameters

name	XML name of the parameter (XML entity). This may have a path component, e.g. "Astrobj::Radius", in which case a property named "Astrobj" will be sought in the current object, and setParameter will be called recusrively on this Astrobj with Radius as name.
content	string representation of the value
unit	string representation of the unit

Returns: 0 if this parameter is known, 1 if it is not.

Reimplemented in Gyoto::Astrobj::Star, Gyoto::Metric::RotStar3_1, Gyoto::Metric::KerrKS, and Gyoto::Astrobj::EquatorialHotSpot.

◆ setParameter() [2/2]

virtual void Gyoto::Object::setParameter	(	Gyoto::Property const &	p,
		std::string const &	name,
		std::string const &	content,
		std::string const &	unit
	)

virtualinherited

Set parameter by Property (and name)

This function is used when parsing an XML description, if Property (p) of this name is found (i.e. either p.name or p.name_false is equal to name). Implementation should fall-back on calling the direct's parent implementation:

class A: public Object {};
class B: public A {
 using B::setParameter;
 virtual void setParameter(Gyoto::Property const &p,
                           std::string name,
                        std::string content,
                        std::string unit);
};
void B::setParameter(Gyoto::Property const &p,
                          std::string name,
                  std::string content,
                  std::string unit) {
  if (name=="Duff") doSomething(content, unit);
  else A::setParameter(p, name, content, unit);
}

Parameters

p	Property that matches name (p.name == name or p.name_false == name)
name	XML name of the parameter (XML entity)
content	string representation of the value
unit	string representation of the unit

Reimplemented in Gyoto::Astrobj::PolishDoughnut.

◆ setParameters()

virtual void Gyoto::Astrobj::Generic::setParameters ( FactoryMessenger * fmp )

virtualinherited

Main loop in Subcontractor_t function.

The Subcontractor_t function for each Astrobj kind should look somewhat like this (templated as Gyoto::Astrobj::Subcontractor<MyKind>):

SmartPointer<Astrobj::Generic>
Gyoto::Astrobj::MyKind::Subcontractor(FactoryMessenger* fmp) {
  SmartPointer<MyKind> ao = new MyKind();
  ao -> setParameters(fmp);
  return ao;
}

Each object kind should implement setParameter(string name, string content, string unit) to interpret the individual XML elements. setParameters() can be overloaded in case the specific Astrobj class needs low level access to the FactoryMessenger. See UniformSphere::setParameters().

Reimplemented from Gyoto::Object.

Reimplemented in Gyoto::Astrobj::Star, Gyoto::Astrobj::Complex, Gyoto::Astrobj::OscilTorus, and Gyoto::Astrobj::EquatorialHotSpot.

◆ tell()

virtual void Gyoto::Astrobj::PageThorneDisk::tell ( Gyoto::Hook::Teller * msg )

virtual

Update PageThorneDisk::aa_.

Calls updateSpin().

See Hook::Listener::tell()

Reimplemented from Gyoto::Hook::Listener.

◆ transmission()

virtual double Gyoto::Astrobj::Generic::transmission	(	double	nuem,
		double	dsem,
		state_t const &	coord_ph,
		double const	coord_obj[8]
	)		const

virtualinherited

Transmission: exp( α_ν * ds_em )

transmission() computes the transmission of this fluid element or 0 if optically thick. The default implementation returns 1. (no attenuation) if optically thin, 0. if optically thick.

Parameters

nuem	frequency in the fluid's frame
coord	Photon coordinate
dsem	geometrical length in geometrical units

Reimplemented in Gyoto::Astrobj::PatternDisk, and Gyoto::Astrobj::DynamicalDisk3D.

◆ velocityKind()

virtual std::string Gyoto::Astrobj::ThinDisk::velocityKind ( ) const

virtualinherited

Set dir_=t?1:-1.

Get VelocityKind

Member Data Documentation

◆ deltamaxinsidermax_

double Gyoto::Astrobj::Generic::deltamaxinsidermax_

protectedinherited

Maximum Photon integration step inside rmax_ [geometrical units].

Maximum step for Photon integation when inside the sphere of radius rmax_.

deltamaxinsidermax_ is in geometrical units.

◆ kind_

std::string Gyoto::Object::kind_

protectedinherited

The "kind" that is output in the XML entity.

E.g. for an Astrobj, fillElement() will ensure

is written.

◆ plugins_

std::vector<std::string> Gyoto::Object::plugins_

protectedinherited

The plug-ins that needs to be loaded to access this instance's class.

E.g. for an Astrobj, fillElement() will ensure

is written.

◆ rmax_

double Gyoto::Astrobj::Generic::rmax_

protectedinherited

Maximum distance to the center of the coordinate system [geometrical units].

Maximum distance from the center of the coordinate system at which a photon may hit the object. Child classes may compute a decent value for rmax_ at any time if rmax_ is DBL_MAX. External classes (Photons in particular) must use rMax() to access this information.

rmax_ is in geometrical units.

◆ spectrumBB_

SmartPointer<Spectrum::BlackBody> Gyoto::Astrobj::PageThorneDisk::spectrumBB_

private

emission law

disk black body

◆ thickness_

double Gyoto::Astrobj::ThinDisk::thickness_

protectedinherited

disk thickness

Geometrical thickness in geometrical units. Used only in the optically thin regime (flag_radtransf_==1). Should be << rin_. Default: 1e-3.

The documentation for this class was generated from the following file:

GyotoPageThorneDisk.h

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Attributes

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Subcontractor_t

Member Function Documentation

◆ bolometricEmission()

◆ deltaMax()

◆ describeProperty()

◆ emission()

◆ fillElement()

◆ fillProperty()

◆ getDefaultQuantities()

◆ getProperties()

◆ getVelocity()

◆ help()

◆ Impact()

◆ integrateEmission() [1/2]

◆ integrateEmission() [2/2]

◆ isThreadSafe()

◆ operator()()

◆ opticallyThin() [1/2]

◆ opticallyThin() [2/2]

◆ property()

◆ rMax() [1/4]

◆ rMax() [2/4]

◆ rMax() [3/4]

◆ rMax() [4/4]

◆ setParameter() [1/2]

◆ setParameter() [2/2]

◆ setParameters()

◆ tell()

◆ transmission()

◆ velocityKind()

Member Data Documentation

◆ deltamaxinsidermax_

◆ kind_

◆ plugins_

◆ rmax_

◆ spectrumBB_

◆ thickness_
